U-R2040-5A
UNIQUE CNC
Applications of the U-R2040-5A Stone Marble Granite Cutting Trimming 5 Axis CNC Router
It is designed for cutting,trimming and profiling stone,marble,granite,quartzite countertop,basin,lavabo,bathtub,etc.

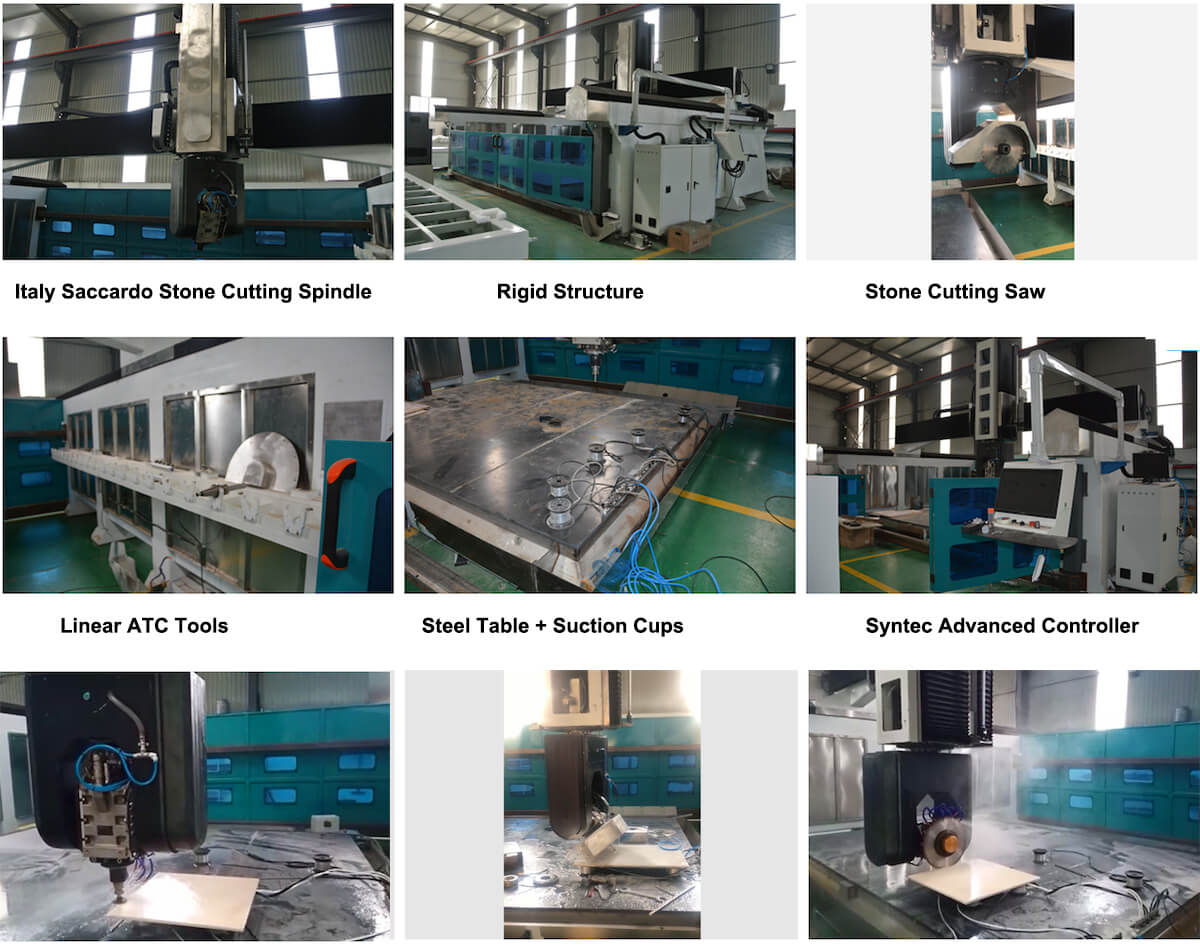

1. The machine utilizes original and professional Italy Saccardo spindle and HSD 5 axis head. The spindle can clamp various saws and tools for cutting,trimming,milling and so on.
2. Rigid and heavy duty structure, heat-treatment to relief the steel stress,enhanced steel bones inside machine body and the beam,no deformation forever,guarantee the machine`s durable,highest precision and best performance.
3. Heavy duty steel table, can support dozens of tons stones.
4. Suction cups for hold stone panels,ceramic and so on.
5. World advanced control system, RTPC function included.
Working area | X axis working area | 2000mm | |
Y axis working area | 4000mm | ||
Z axis working stroke | 350mm | ||
A axis | ±120° | ||
C axis | ±213° | ||
Speed | Fast feeding speed | X axis | 15-35m/min |
Y axis | 15-35m/min | ||
Z axis | 5-10m/min | ||
A axis | 80°/SEC | ||
C axis | 90°/SEC | ||
Cutting Speed | X axis fast feeding speed | 6-10m/min | |
Y axis fast feeding speed | 6-10m/min | ||
Z axis fast feeding speed | 3-5 m/min | ||
Working table | Steel working table | ||
Spindle | Type | Italy Saccardo Stone Cutting Spindle, 18KW | |
Five axis head | Italy HSD | ||
ATC type | Linear type ATC | ||
Spindle cooling type | Water-cooling | ||
Saw blade diameter | 300mm | ||
Machine precision | Re-positioning precision | ±0.05mm | |
Control system | Controller | German SIEMENS/Taiwan SYNTEC/Italy OSAI | |
| Command | G code | ||
| Console | Arm type | ||
| Driving | Japan YASKAWA | Absolute encoder type | |
| Gross weight | 14 tons | ||
