U-R2030-5A
UNIQUE CNC
Model No. | U-R2030-5A high precision 5 axis cnc router | |||
Function | A variety of glass fiber, carbon fiber, composites, epoxy tooling board,solid wood,etc., a multi-step multi-angle, high-efficiency, processing, etc. | |||
Design | The machine base and the beam gantry are welded by thick steel tube with enhanced bones inside, Z axis and two stands under beam are cast iron | |||
Control axis | Spindle move left and right (crosswise stroke), move right is X+ | |||
Gantry move forward and backward(lengthways stroke),move forward is Y+ | ||||
Spindle move up and down(vertical direction), move up is Z+ | ||||
Transmission | X、Y、Z、B、C are all control axis, 5 axis move together, X/Y/Z axis use square linear guide rail, Y/Z axis use ball screw, X axis use screw rack, B/C axis use high rigidity RV structure transmission. | |||
Original point of control | Ｘ axis： center of spindle locate at the left of working table | |||
Ｙ axis： center of spindle locate at the rear of the working table | ||||
Effective working area | X axis | 2000mm | ||
Y axis | 3000mm | |||
Z axis | 1000mm | |||
A axis | ±120° | |||
C axis | ± 360° | |||
Machine dimension | 6000*5500*4500mm | |||
Moving speed | No-loading moving speed | X axis | ≥60m/min | |
Y axis | ≥60m/min | |||
Z axis | ≥40m/min | |||
A axis | ≥120°/s | |||
C axis | ≥120°/s | |||
Working speed | X axis fast working speed | 0-50m/min | ||
Y axis fast working speed | 0-50m/min | |||
Z axis fast working speed | 0-30m/min | |||
A axis | ≥120°/s | |||
C axis | ≥120°/s | |||
Working table structure | Cast steel table with T-slots, biggest load capacity,no deformation forever (Optional: aluminum table or vacuum table) | |||
Machine head | 5 axis head | DEMAS L type 5 axis head | ||
| Spindle | Original Italy HITECO ATC spindle | |||
Spindle power | 8/12 KW | |||
Spindle rotating speed | 3000-24000RPM | |||
Tool shank model | HSK63F | |||
Cooling type | Water-cooling | |||
Lubrication | free of lubrication system is equipped with spindle | |||
Accuracy | geometric accuracy | 0.06MM/200MM | ||
Repositioning accuracy | ≤0.05MM | |||
NCcontrol system | Model | SYNTEC system with RTCP function | ||
Specification | Refer to related documents please | |||
Console | Structure | Comprehensive control cabinet with wheel | ||
Configuration | At the front of machine | |||
Machine structure and NC speciality | The main body of the machine is soldered, and the advanced heat treatment process and precision processing and manufacturing process are used, high-precision five faces machining center, high-precision processing, to ensure that machine tools have persistent stability, accuracy and higher strength, static And dynamic rigidity, and have good shock absorption, thermal stability and impact, ensuring the high rigidity and heavy load of the workpiece. CNC system adopted human chance, menu selection and background editing, programming function is rich, easy to learn, large memory capacity, complete diagnostic function, the alarm information display, convenient maintenance, pitch compensation, tool compensation function | |||
Quality guarantee | Guide rail of machine are all adopted with Taiwan dust-proof and mute guide rail and ball screw, all servo motor are all from JAPAN YASKAWA, all main electric accessories are all adopted world famous brands. | |||
Necessary power supply | Type | 3 phase 380V，50/60HZ | ||
Capacity | around 38KW | |||
Air source | 0.6MPa dry and no oil | |||
Steel worktable secured to the ground, with T-slots for mounting fixtures to secure the work piece in place.
Beam with gantry movement along the “shoulders” on ground rides and roller sliding block assemblies；the drive assembly consists of a pinion and rack system with rack precision to hundredths, with high precision reduction gears; the motorization is by world famous brushless motors.
Spindle carriage manufactured from iron casting and moving on roller sliding block assemblies; the drive assembly consists of a precision pinion and rack system powered by a brushless motor. The spindle cylinder (Z axis) is positioned vertically on the inside of the carriage and is moved by a ball screw transmission system. Provided with a pneumatic balancing system.

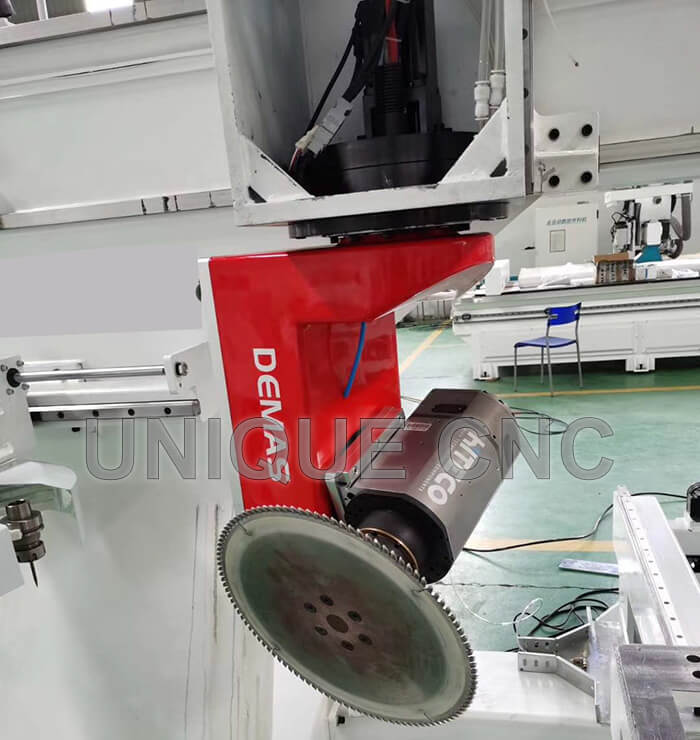

Birotary head for 5-axis machining. The head has a symmetrical structure and consists of two main structural elements, the first (C axis) for ± 220° rotation around its own vertical axis and the second element (A axis) rotating from 0° to ±115° and housing the high-frequency spindle. Rotation transmission are provided by brushless motors.

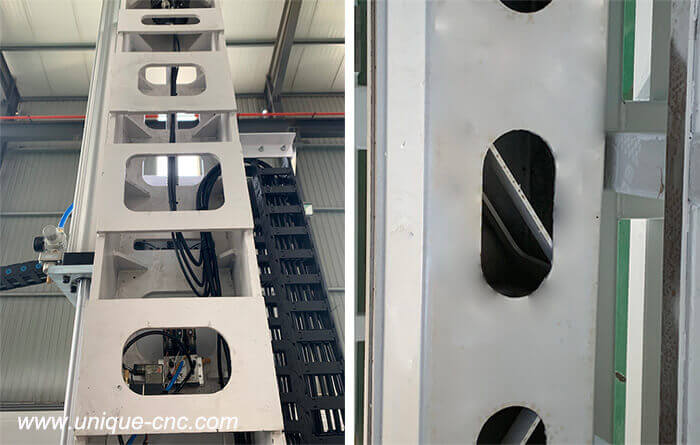

Machine body and beam have bones inside the steel tubes,enhance the strucutre rigidity and strength, the structure will not deform forever.

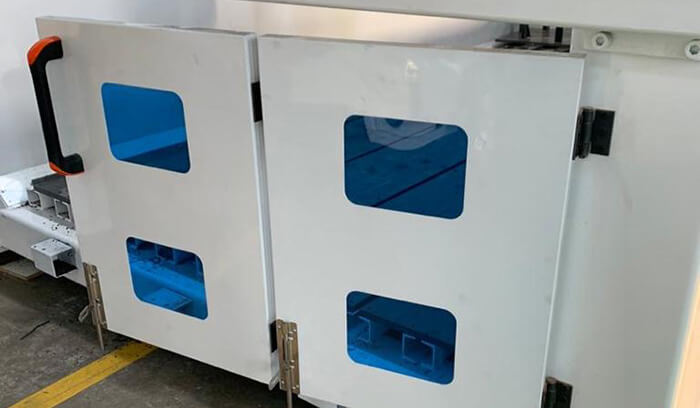

Frontal protection barrier consisting of a series of sliding doors with manual opening; doors are made from structure and are provided with wide inspection ports. The rear part of the milling centre is closed by a set of steel plate panels.

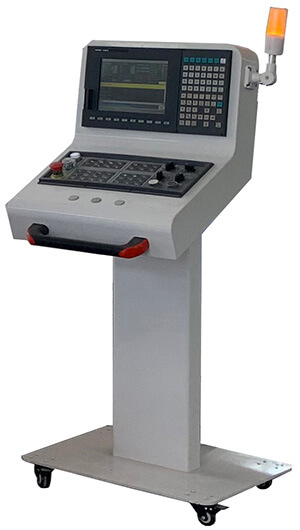

Independent control console at front of the machine, convenient to move and operate.
Model No. | U-R2030-5A high precision 5 axis cnc router | |||
Function | A variety of glass fiber, carbon fiber, composites, epoxy tooling board,solid wood,etc., a multi-step multi-angle, high-efficiency, processing, etc. | |||
Design | The machine base and the beam gantry are welded by thick steel tube with enhanced bones inside, Z axis and two stands under beam are cast iron | |||
Control axis | Spindle move left and right (crosswise stroke), move right is X+ | |||
Gantry move forward and backward(lengthways stroke),move forward is Y+ | ||||
Spindle move up and down(vertical direction), move up is Z+ | ||||
Transmission | X、Y、Z、B、C are all control axis, 5 axis move together, X/Y/Z axis use square linear guide rail, Y/Z axis use ball screw, X axis use screw rack, B/C axis use high rigidity RV structure transmission. | |||
Original point of control | Ｘ axis： center of spindle locate at the left of working table | |||
Ｙ axis： center of spindle locate at the rear of the working table | ||||
Effective working area | X axis | 2000mm | ||
Y axis | 3000mm | |||
Z axis | 1000mm | |||
A axis | ±120° | |||
C axis | ± 360° | |||
Machine dimension | 6000*5500*4500mm | |||
Moving speed | No-loading moving speed | X axis | ≥60m/min | |
Y axis | ≥60m/min | |||
Z axis | ≥40m/min | |||
A axis | ≥120°/s | |||
C axis | ≥120°/s | |||
Working speed | X axis fast working speed | 0-50m/min | ||
Y axis fast working speed | 0-50m/min | |||
Z axis fast working speed | 0-30m/min | |||
A axis | ≥120°/s | |||
C axis | ≥120°/s | |||
Working table structure | Cast steel table with T-slots, biggest load capacity,no deformation forever (Optional: aluminum table or vacuum table) | |||
Machine head | 5 axis head | DEMAS L type 5 axis head | ||
| Spindle | Original Italy HITECO ATC spindle | |||
Spindle power | 8/12 KW | |||
Spindle rotating speed | 3000-24000RPM | |||
Tool shank model | HSK63F | |||
Cooling type | Water-cooling | |||
Lubrication | free of lubrication system is equipped with spindle | |||
Accuracy | geometric accuracy | 0.06MM/200MM | ||
Repositioning accuracy | ≤0.05MM | |||
NCcontrol system | Model | SYNTEC system with RTCP function | ||
Specification | Refer to related documents please | |||
Console | Structure | Comprehensive control cabinet with wheel | ||
Configuration | At the front of machine | |||
Machine structure and NC speciality | The main body of the machine is soldered, and the advanced heat treatment process and precision processing and manufacturing process are used, high-precision five faces machining center, high-precision processing, to ensure that machine tools have persistent stability, accuracy and higher strength, static And dynamic rigidity, and have good shock absorption, thermal stability and impact, ensuring the high rigidity and heavy load of the workpiece. CNC system adopted human chance, menu selection and background editing, programming function is rich, easy to learn, large memory capacity, complete diagnostic function, the alarm information display, convenient maintenance, pitch compensation, tool compensation function | |||
Quality guarantee | Guide rail of machine are all adopted with Taiwan dust-proof and mute guide rail and ball screw, all servo motor are all from JAPAN YASKAWA, all main electric accessories are all adopted world famous brands. | |||
Necessary power supply | Type | 3 phase 380V，50/60HZ | ||
Capacity | around 38KW | |||
Air source | 0.6MPa dry and no oil | |||
Steel worktable secured to the ground, with T-slots for mounting fixtures to secure the work piece in place.
Beam with gantry movement along the “shoulders” on ground rides and roller sliding block assemblies；the drive assembly consists of a pinion and rack system with rack precision to hundredths, with high precision reduction gears; the motorization is by world famous brushless motors.
Spindle carriage manufactured from iron casting and moving on roller sliding block assemblies; the drive assembly consists of a precision pinion and rack system powered by a brushless motor. The spindle cylinder (Z axis) is positioned vertically on the inside of the carriage and is moved by a ball screw transmission system. Provided with a pneumatic balancing system.
Birotary head for 5-axis machining. The head has a symmetrical structure and consists of two main structural elements, the first (C axis) for ± 220° rotation around its own vertical axis and the second element (A axis) rotating from 0° to ±115° and housing the high-frequency spindle. Rotation transmission are provided by brushless motors.
Machine body and beam have bones inside the steel tubes,enhance the strucutre rigidity and strength, the structure will not deform forever.
Frontal protection barrier consisting of a series of sliding doors with manual opening; doors are made from structure and are provided with wide inspection ports. The rear part of the milling centre is closed by a set of steel plate panels.
Independent control console at front of the machine, convenient to move and operate.
