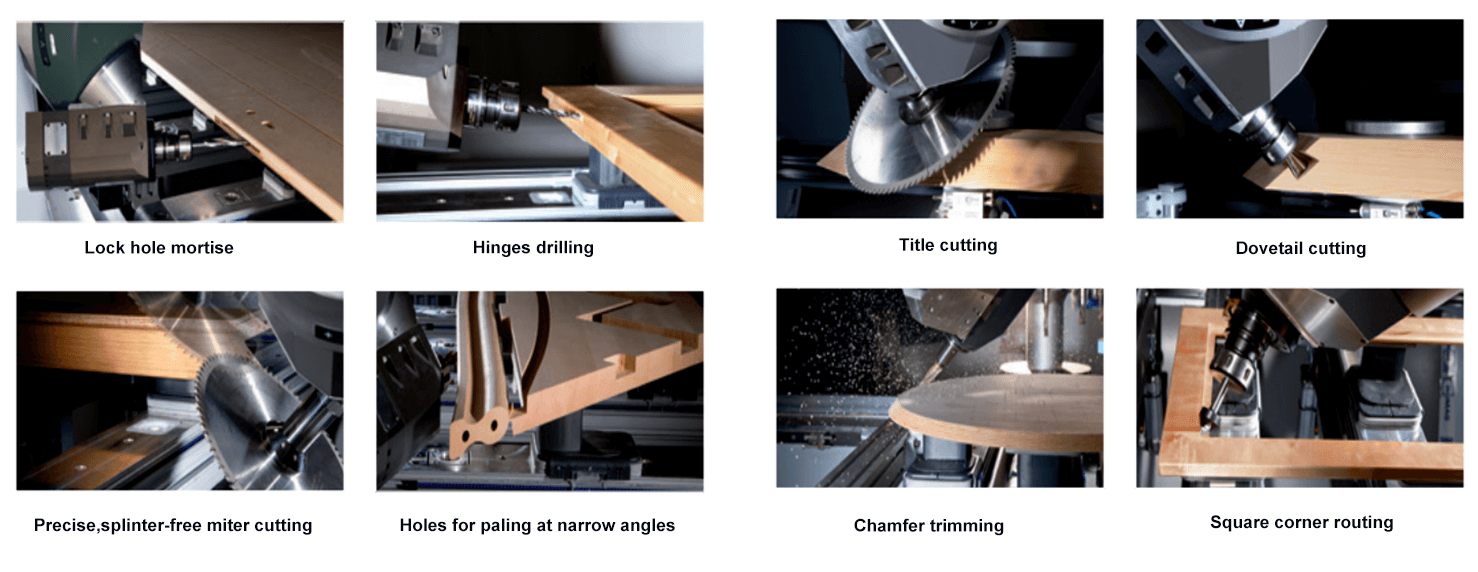

Unique CNC PTP-2040-5A Multi-functional 5 Axis CNC Router with PTP table is designed for furniture industry. The machine equips with Germany SCHMALZ PTP, Italy HITECO 10KW water cooled spindle, carousel type ATC and Italy TPA control system with RTCP function, can cutting, drilling, boring, milling and trimming panel wood or solid wood at ease.

Main Advantages of the PTP-2040-5B 5 Axis CNC Router With PTP Table

1. The machine uses original Germany SCHMALZ PTP table, the working table guarantees maximum flexibility in all areas of machining, even can clamp complicated shapes workpieces  quickly and easily.

2. Carousel type Automatic Tool Changer is positioned at the side of the gantry for fast access for changing tools.

3. YASKAWA motors are built to last and provide the necessary power to the machine.  The torque curves are specifically designed for each individual application to ensure power is available when needed.

4. European quality 5 axis head, Italy HITECO or HSD 10-12KW water cooled spindle.

5. Thick steel-welded machine structure treat by tempering, after tempering, stress relieved, plus the inside enhanced steel bones,the whole large scale machine will not deform forever.

6. Cast iron casting vertical rams.

7. High-reliability controlling system is provided by Italy TPA/OSAI or Taiwan SYNTEC/, with RTCP function, optimize routing path.

Main Parameters of the PTP-2040-5B 5 Axis CNC Machine For Furniture Production
