U-R1212-5B
UNIQUE CNC

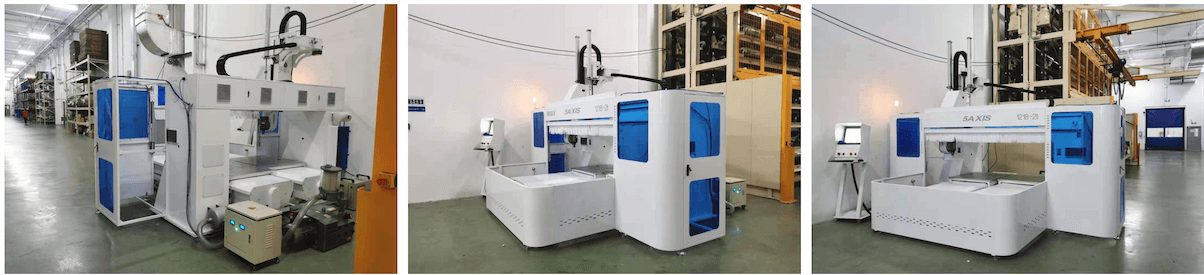

U-R1212-5B is B series 5 Axis CNC Router supplied by Unique CNC. It equips with two movable tables, when process small items, can load 2 workpieces on two tables,when process large items, the 2 worktables can combined as one table. The two tables are transmit by ballscrews, which can get highest precision. It utilizes Italy HITECO 10KW water cooling spindle and Yaskawa 1500W servo motors, widely used in fiberglass,wood,foam,etc 3D modeling,cutting,drilling,trimming and milling.
Two movable tables,each table size is 1200x1200mm, transmit by ballscrews, vacuum or T-slot table surface.
OSAI or Syntec controller, friendly using.
Strong machine structure,thick steel tube welded, enhanced steel bones inside.
Circle type 12 tools Auto tools changing, HSK63 collets.
Model | U-R1212-5B 5 axis CNC router milling machine |
Working way | Fixed gantry,movable tables |
Working area of each table | 1200x1200mm |
Max.working area | 1200x2400mm |
C Axis | ±213° |
A Axis | ±120° |
X,Y Axis no-load moving speed | 35m/min |
Z Axis no-load moving speed | 10m/min |
C-Axis speed | 2700°/min |
A-Axis speed | 2700°/min |
Spindle | Italy HITECO 10 KW |
Driving sytem | Yaskawa servo |
Inverter | Delta |
ATC tool | Circle type, 12 tools |
Control system | Osai/Syntec |
Machine weight | 12t |
Voltage | 380V /480V 3 phase ,50/60Hz |
U-R1212-5B is B series 5 Axis CNC Router supplied by Unique CNC. It equips with two movable tables, when process small items, can load 2 workpieces on two tables,when process large items, the 2 worktables can combined as one table. The two tables are transmit by ballscrews, which can get highest precision. It utilizes Italy HITECO 10KW water cooling spindle and Yaskawa 1500W servo motors, widely used in fiberglass,wood,foam,etc 3D modeling,cutting,drilling,trimming and milling.
Two movable tables,each table size is 1200x1200mm, transmit by ballscrews, vacuum or T-slot table surface.
OSAI or Syntec controller, friendly using.
Strong machine structure,thick steel tube welded, enhanced steel bones inside.
Circle type 12 tools Auto tools changing, HSK63 collets.
Model | U-R1212-5B 5 axis CNC router milling machine |
Working way | Fixed gantry,movable tables |
Working area of each table | 1200x1200mm |
Max.working area | 1200x2400mm |
C Axis | ±213° |
A Axis | ±120° |
X,Y Axis no-load moving speed | 35m/min |
Z Axis no-load moving speed | 10m/min |
C-Axis speed | 2700°/min |
A-Axis speed | 2700°/min |
Spindle | Italy HITECO 10 KW |
Driving sytem | Yaskawa servo |
Inverter | Delta |
ATC tool | Circle type, 12 tools |
Control system | Osai/Syntec |
Machine weight | 12t |
Voltage | 380V /480V 3 phase ,50/60Hz |
