Fiberglass GRP Resin Carbon Fiber Styrofoam Aluminum Cutting CNC Router 5 Axis

Applications of the 5 Axis CNC Router:

1. Die industry: foam,wood,plastic,fiberglass and other soft metal materials dies.

2. Mold industry: car mold,boat mold,ship mold,vessel mold,plane mold,foundry mold,die mold,turbine blade,large metalloid moulds, automotive foam mold, rail wooden mold, wooden mold train, wooden ship model, wooden model aviation, 3D surface carving and 3D shape cutting

3. Animal and people figure,statue processing industry.

4. Plate processing industry: insulation,aluminum,plastic and chemical,epoxy,resin,ABS, PP,PE and so on.

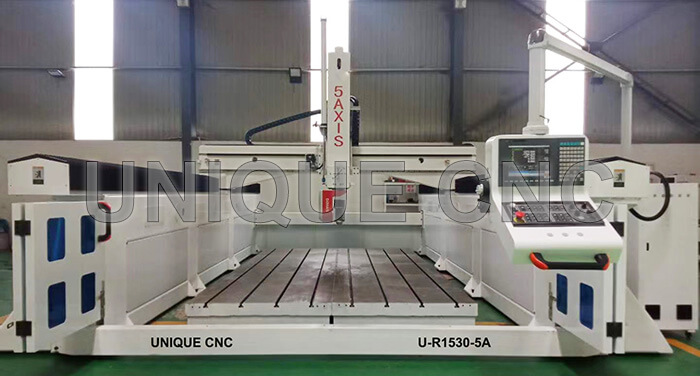

Structural features of this U-R1530-5A best 5 Axis CNC Router

Steel worktable secured to the ground, with T-slots for mounting fixtures to secure the work piece in place.

Beam with gantry movement along the “shoulders” on ground rides and roller sliding block assemblies；the drive assembly consists of a pinion and rack system with rack precision to hundredths, with high precision reduction gears; the motorization is by world famous brushless motors.

Spindle carriage manufactured from iron casting and moving on roller sliding block assemblies; the drive assembly consists of a precision pinion and rack system powered by a brushless motor. The spindle cylinder (Z axis) is positioned vertically on the inside of the carriage and is moved by a ball screw transmission system. Provided with a pneumatic balancing system.

Birotary head for 5-axis machining. The head has a symmetrical structure and consists of two main structural elements, the first (C axis) for ± 220° rotation around its own vertical axis and the second element (A axis) rotating from 0° to ±115° and housing the high-frequency spindle. Rotation transmission are provided by brushless motors.

Machine body and beam have bones inside the steel tubes,enhance the strucutre rigidity and strength, the structure will not deform forever.

Frontal protection barrier consisting of a series of sliding doors with manual opening; doors are made from structure and are provided with wide inspection ports. The rear part of the milling centre is closed by a set of steel plate panels.

Control console mounted on a mobile pendant structure and equipped with Syntec controller, a handwheel included.

Electrics and utilities are housed in a cabinet with high grade of protection and cooled by an air conditioning unit specially designed for a maximum external temperature of + 45 °C.

Parameters of the U-R1530-5A 5 Axis CNC Router For Curved Plywood Cutting
