U-R1010-5B
UNIQUE CNC
U-R1010-5B is B series small size 5 Axis CNC Router supplied by Unique CNC. It equips with one movable table and fixed gantry. Working table is 1000x1000x600mm, suitable for small workpieces like toys, luggages, chairs, fiberglasses, small moulds etc cutting, drilling, trimming, milling, notching and chamfering.
Beautiful and compact design for small materials processing.

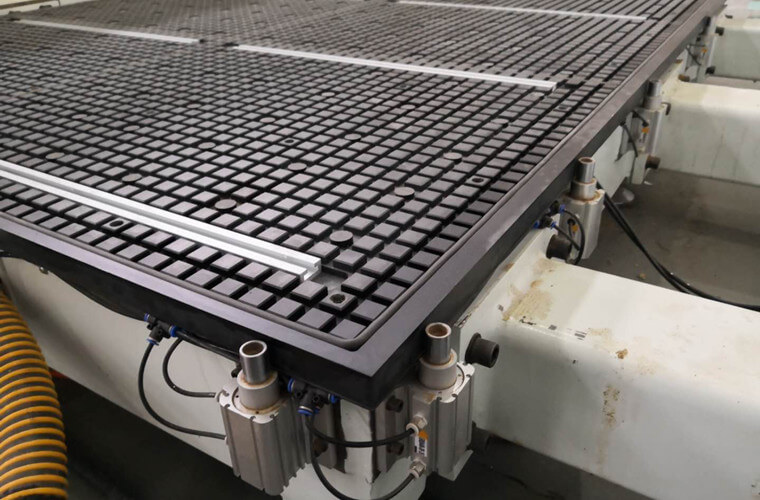

Movtable table size is 1000x1000mm, vacuum or aluminum T-slot table surface.

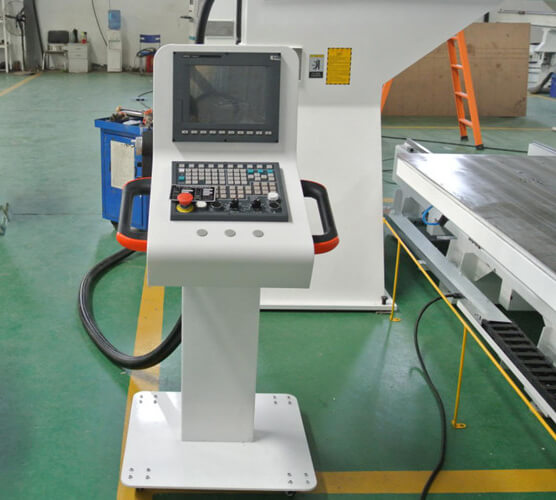

OSAI or Syntec controller, friendly using.
Strong machine structure,thick steel tube welded.

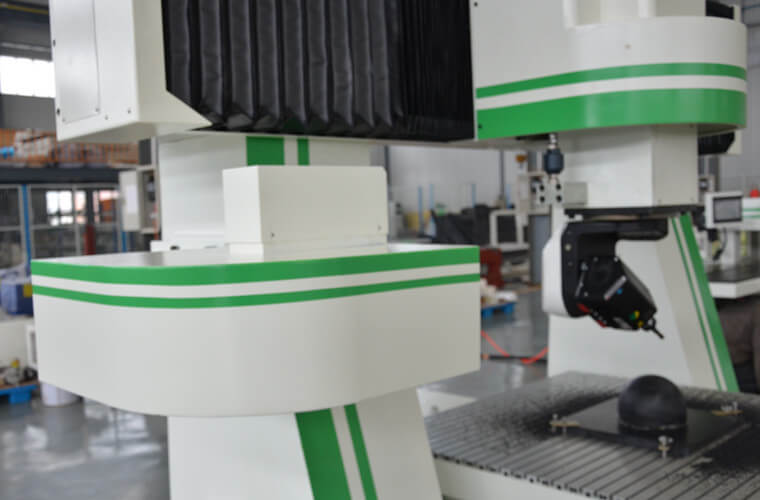

Circle type 12 tools Auto tools changing, HSK63 collets.
| Model | U-R1010-5B 5 axis Mini CNC Router |
| Table structure | Whole structure processed by heat treatment for stress-relief, sanding prior to painting to remove rust and keep beautiful and smooth painting |
| Working way | Fixed gantry,movable table |
| Working area | 1000x1000x600mm |
| C Axis | ±213° |
| A Axis | ±120° |
| X,Y Axis no-load moving speed | 35m/min |
| Z Axis no-load moving speed | 10m/min |
| C-Axis speed | 2700°/min |
| A-Axis speed | 2700°/min |

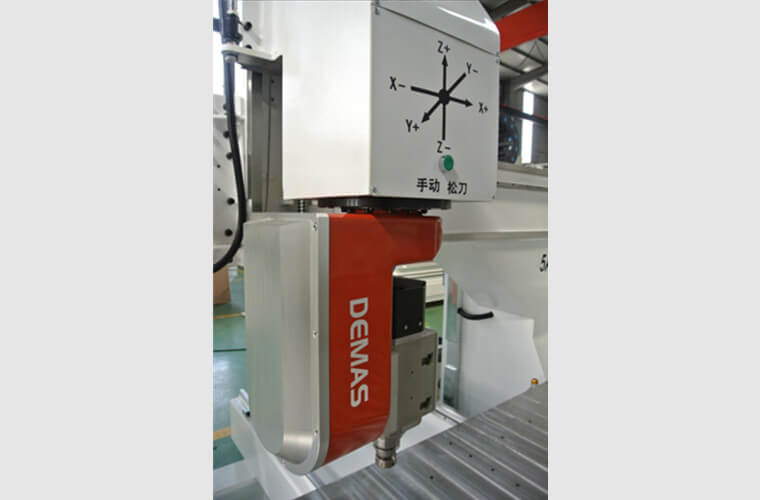

| Spindle | Italy HITECO 10 KW |
| Driving sytem | Yaskawa servo |
| Inverter | Delta |
| ATC tool | Circle type, 12 tools |
| Control system | Osai/Syntec |
| Table type | Aluminim or vacuum table |
| Voltage | 380V /480V 3 phase, 50/60Hz |
