Are you looking for a multi-function CNC which is able to drill in vertical and horizontal,cut and process columns? This machine definately can meet your requirements. Equips with 9.0KW ATC spindle and gantry attached 6 tools changer, 3.2KW side drilling spindle,Φ250mm chuck diameter and professional controller,this machine can process side drilling,multi-tool cutting and column engraving without any interruptions.
Demo video of the all-in-one CNC Router with ATC and rotary
Parameters of the Auto tools changing CNC Router with horizontal drill
Model No. | U-R2030ATC-4 |
Working size | 2000x3000x300mm |
Rotary size | D: Φ250mm, L:2500mm |
Spindle | Cutting spindle: 9.0KW, auto tools changing,0-24000rpm,ER32 Side drilling spindle: 3.2KW |
Tools changer | 6 pieces, attaches to gantry |
VFD | 11.0KW |
Driving | AC Servo motors and drivers |
Transmit | X and Y are transmit by helical gear racks, Z is transmit by rolling ballscrews |
Guide rails | Lineare square rails |
Max.moving speed | 60m/min |
Controller | Ncstudio NK280 |
Compatible command | G code |
Worktable | Combined T-slot and vacuum table |
Lubricate system | Electrical |
Tools sensor | Included |
Voltage | 220V/380V/3 Phase |
Machine dimension | 3800x3200x2200mm |
Weight | 2000kg |
Main features of the 4 axis ATC woodworking CNC Router
1. All functions in one machine: panel and columns cutting and engraving,auto tools changing, vertical and horizontal drilling.
2. The horizontal spindle for drilling has two drilling terminals,so it is able to drill two sides in the wood without flipping the wood.
3. Linear tools changer attaches to the gantry,closest distance with the spindle,fastest tools changing speed. Different tools changer types please refer to this article: Different types of auto tools changer of ATC CNC Router.

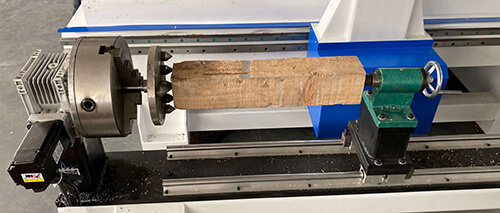

4. 4th rotary for column 3D carving,put at side of the table, so it does not cover the space of flat table,and most convenient to load and unload the columns.
5. NK280 four axis ATC controller
