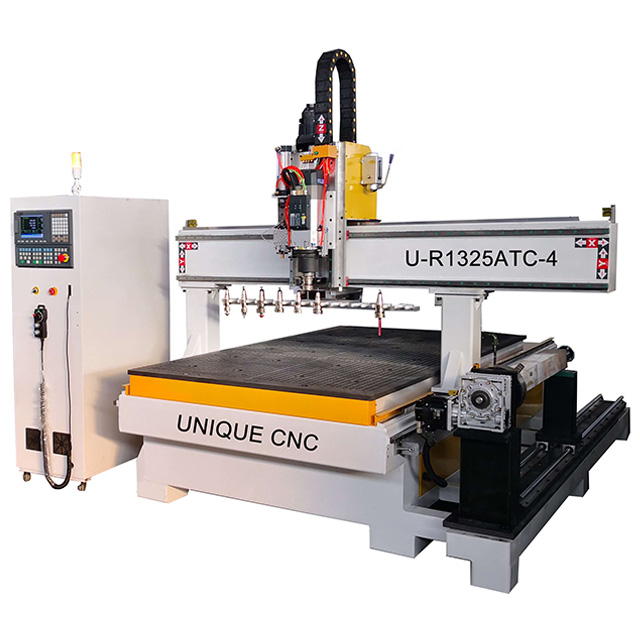

U-R1325ATC-4
UNIQUE CNC
Strong and rigid structure built by weld-steel,milled and drilled by professional facilities,high precision and durable.
Tools holder attaches to the gantry,fastest tools changing speed.
High quality,popular and famous components guarantee stable performance and longest life.
Syntec controller with remote hand-wheel,friendly interface and operation.
The 4th rotary put at side of table, more convenient to load and unload the workpieces.
| Item | Standard features | Options |
| Model No. | U-R1325ATC-4 | |
| Bed structure | Thick steel tube welded | |
| Cutting area | 4'x8' (1300x2500mm) | 5'x10'(1500x3000mm) |
| Distance between gantry and table surface | 300mm | 200-600mm |
| Transmit | X and Y axis: helical rack and pinion Z axis: ballscrews Linear square guide rails | |
| Driving | AC Servo, 850W-1500W | |
| Spindle | 9.0 KW | 12.0KW |
| Tools changer | 12 pieces, attaches to the gantry | Fix at back of table |
| Moving speed | 90m/min | |
| Cutting speed | 20m/min or more | |
| Repeat accuracy | 0.01mm | |
| Controller | Syntec | |
| Table | Vacuum table | |
| Compatible code | G code | |
| Compatible softwares | Artcam,Vcarve,Mastercam,Powermill,Rhino... | |
| Voltage | 220V/380V | |
| Tools set | High sensitive tool sensor | |
| 4th rotary size | Diameter: 200mm Overall length: 2500mm | Bigger diameters. |
