U-R6090ATC
UNIQUE CNC

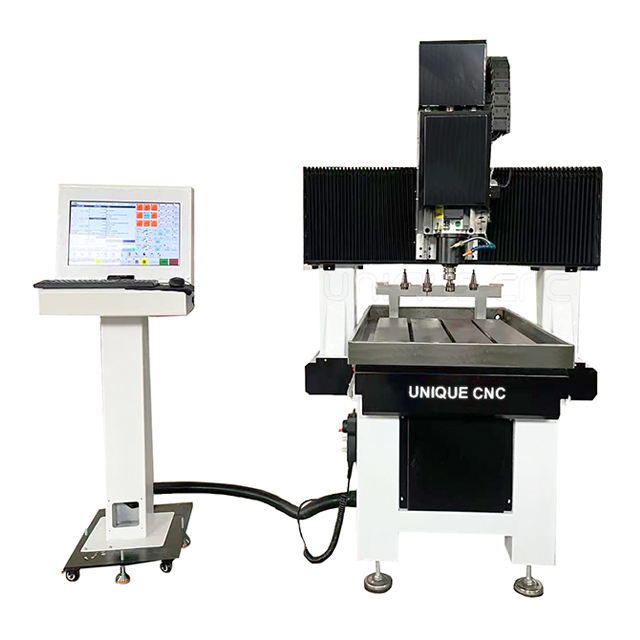

If you have a small shop but need professional results, this 6090 ATC CNC router is the perfect answer. The Automatic Tool Changer (ATC) enables the machine to switch bits automatically without manual operation. You can seamlessly switch from heavy cutting work to fine detail processing without pressing the stop button, greatly improving processing continuity.
Save Time: The auto tool changer swaps cutting bits in a few seconds, which can effectively shorten the processing cycle and help you finish all jobs faster.
Save Space: The small footprint design of 6090 CNC router fits perfectly into tight corners and small workshops easily, no need for large working area.
High Accuracy: Equipped with a sturdy cast iron worktable and high-precision servo motors, the machine keeps every cutting and engraving work precise and consistent.
Versatile Application: One single machine for multi-processing needs - cut wood materials, engrave plastic sheets, mill aluminum molds and more different materials processing.
| Specification | Details |
|---|---|
| Model | U-R6090ATC |
| Table Size | 600×900×200mm (2×3ft) |
| Machine Body | Welded square tube structure |
| Table Surface | Cast steel with T-slot ( Vacuum table is optional) |
| Z Axis Transmission | Taiwan TBI ball screw |
| X/Y Axis Transmission | Helical rack and pinion |
| Spindle | 9KW air cooling spindle |
| Spindle Speed | 0-24,000 RPM |
| Drive Motor | Servo motor |
| Max. Rapid Travel Rate | 16,000mm/min |
| Max. Working Speed | 8,000mm/min |
| Control System | LNC, Ncstudio or Syntec |
| Compatible Software | Type3, ArtCAM |
| Command Language | G-code |
| Machine Precision | 0.01mm |
| Repositioning Precision | 0.03mm |
| Working Voltage | AC220V / 380V (optional) |
Dual Cooling Spindle Options: Water-cooling and air-cooling spindle systems are available for different applications. Water-cooled spindles are recommended for aluminum cutting and high-intensity machining; air-cooled spindles are ideal for woodworking with energy efficiency and easy maintenance.
Multiple Control System Choices: Optional Taiwan Syntec, DSP, LNC and Mach3 controllers, customized by budget and functional requirements. All systems ensure stable operation and user-friendly experience for both beginners and professionals.
Flexible Table Configurations: T-slot tables for clamping irregular workpieces, vacuum tables for flat materials (MDF, acrylic, PVC) adsorption, greatly enhancing machining stability and versatility.
Rigid Welded Structure: Thick square steel with high-temperature stabilized welding, minimal deformation, excellent rigidity and strong load-bearing capacity, stable performance for long-hour high-speed machining.
One-Touch Automatic Lubrication: Integrated lubrication system with one-touch operation, lubricate all moving parts properly, extend component lifespan and reduce maintenance downtime.
Broad Software Compatibility: Compliant with international standards, fully compatible with Type3, Artcam, Castmate, Proe, UG, Artcut and other mainstream CAD/CAM software, seamless design-to-machining workflow.
Linear ATC System: 5-tool storage capacity linear automatic tool changer, fast and accurate tool switching, efficient handling of complex multi-step machining tasks.
This compact 6090 ATC CNC router is capable of milling, cutting, and engraving a wide range of materials, including wood, MDF, acrylic, artificial stone, artificial marble, bamboo, composite boards, double-color boards, PVC sheets, aluminum, brass and other soft metals.
It is widely applied in industries: woodworking processing, stone processing, advertising signage production, artwork & decoration making, electronics manufacturing, mold making, musical instrument production and many other fields.
Selecting the right small CNC router with automatic tool changer is critical to ensure project efficiency and processing quality. Consider these key factors to make an informed decision matching your needs and budget:
Assess Project Requirements: Clarify processed materials (wood, plastic, metal) and design complexity, choose matching spindle power and cutting capabilities. Prioritize high precision + speed balance for intricate designs.
Evaluate Build Quality: Choose routers made of heavy-duty steel or aluminum, solid frame minimizes vibration, enhances cutting accuracy and ensures long-term reliability for heavy workloads.
Inspect the ATC System: Check multi-tool handling capacity, tool compatibility and tool-changing speed - core factors affecting productivity, reduce downtime and simplify multi-tool projects.
Review Control System & Software: Prefer user-friendly control panels and intuitive software, CAD/CAM compatibility streamlines design & machining (friendly for beginners). Advanced features & updates support for professional users.
Consider Budget: Balance features and cost, invest in quality but avoid overspending on unnecessary functions, explore financing/promotions for maximum value.
Verify After-Sales Support: Choose brands with comprehensive warranties, responsive technical support and maintenance services, ensure quick troubleshooting and minimal downtime.
Proper maintenance is the key to extend the lifespan of 6090 ATC CNC router and maintain optimal performance. Regular upkeep reduces downtime, avoids costly repairs and preserves machining precision. Essential maintenance tips:
Remove dust, debris and leftover materials from table, spindle and tool changer after each use.
Clean sensitive components with soft brush or vacuum to prevent blockages and performance issues.
Apply manufacturer-recommended lubricants to rails, screws and bearings regularly.
Lubrication ensures smooth movement, reduces wear & tear and extends component service life.
Check ATC system alignment and functionality on a regular basis.
Keep tool holders clean and securely fastened to avoid tool-changing errors.
Perform calibration tests regularly to maintain cutting precision.
Adjust settings promptly if accuracy or alignment deviations are detected.
Inspect cables, connections and wiring for damage or wear.
Keep control panel clean and ensure machine runs within specified voltage range.
Inspect cutting tools frequently and replace dull/damaged bits in time.
Sharp tools improve cutting quality and reduce spindle strain.
Adhere to the maintenance schedule and recommendations in user manual.
Use only authorized parts and accessories to avoid compatibility issues.
A small 600*900mm CNC router with auto tool changer delivers unparalleled efficiency and precision, which completely optimizes your processing workflow. The automatic tool-changing function eliminates manual tool swaps, saves a lot of working time and reduces labor costs - especially valuable for complex designs or high-volume production.
By minimizing downtime between tool changes, the ATC ensures consistent processing quality across multi-step tasks, reduces human error, and excels at detailed projects like custom furniture making, signage production and intricate engravings. The machine's high speed and accuracy directly bring higher output and better-quality finished products.
Although the initial investment of ATC CNC router is higher than standard models, the long-term returns are substantial. Its versatility, reliability and productivity boost will significantly increase your production output and profitability, making it a worthwhile investment for any small business, workshop or hobbyist workspace.
