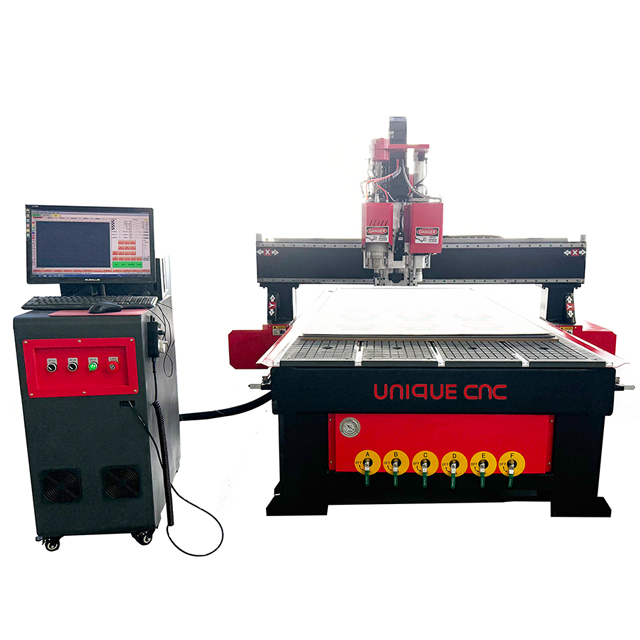

U-R1325ATC-D
Unique CNC
This ATC CNC Router with Oscillating Knife Digital Cutter and CCD is a revolutionary multi-purpose CNC machining equipment designed for modern industrial production, which perfectly solves the pain point of needing multiple machines to process different materials. The machine adopts a heavy-duty gantry structure with thickened square tube welding and high-temperature annealing treatment, which effectively eliminates internal stress and ensures the machine body has no deformation for long-term use, providing a solid foundation for high-precision processing.
The Automatic Tool Changer (ATC) is the core advantage of this CNC router, equipped with a linear/carousel tool magazine with 8-16 tool positions. It can automatically change milling cutters, engraving cutters, V-cutters and other tools according to the processing program, which greatly improves the processing efficiency of complex workpieces. The high-power water-cooled spindle with 9KW/12KW/15KW power can realize high-speed engraving and milling of metal sheets (aluminum, copper, thin steel), wood, MDF, acrylic, PVC and other rigid materials with smooth surface and high precision.
The integrated Oscillating Knife Digital Cutter is a professional soft material cutting head with a vibration frequency of 20000-30000 times/min. Different from the traditional CNC router spindle cutting, the oscillating knife cuts materials by high-frequency up and down vibration, which avoids thermal melting of foam and plastic materials, no dust generated during cutting foam and cardboard, and the cutting edge is neat and burr-free. It is the best choice for cutting EVA foam, pearl cotton, corrugated cardboard, leather, fabric, KT board, foam board and other flexible materials.
The built-in High Precision CCD Visual Positioning System is a must-have function for processing printed materials. The CCD camera can quickly scan the outline of the pre-printed pattern on the material surface, automatically identify the cutting path and realize edge following cutting, which is especially suitable for advertising sign making, decorative panel cutting, and irregular material processing. The CCD system can also realize automatic correction of material placement deviation, which greatly reduces the scrap rate and improves production efficiency.
Integrated Multi-functional Design: Combined ATC CNC router, oscillating knife digital cutter and CCD camera in one machine, meet all your hard & soft material processing needs.
Automatic Tool Changer (ATC): Fast tool changing within 3-5 seconds, high efficiency for multi-process engraving and milling without manual operation, save labor cost.
High Speed Oscillating Knife Cutter: Professional digital cutting head with no dust, no burrs, no thermal melting, perfect for cutting foam, cardboard, leather, fabric, KT board and soft composite materials.
High Precision CCD Visual Positioning System: Automatic contour scanning & edge following, realize accurate cutting of printed materials, irregular panels and pre-printed sheets with zero error.
Heavy Duty Rigid Frame: Thickened steel structure with high stability, anti-vibration, no deformation during high-speed machining, ensure machining precision.
Dual Processing Mode: Freely switch between spindle milling/engraving and oscillating knife cutting, interchangeable use for rigid materials (MDF, wood, acrylic) and soft materials (foam, cloth) easily.
Easy Material Clamping System: Equipped with vacuum adsorption table + T-slot worktable, firm fixation for different size material blocks, easy operation and high safety.
Intelligent Control System: User-friendly CNC control panel, support CAD/CAM file import, offline programming, breakpoint resume and power failure protection, simple operation for workers.
High Efficiency Dust Collection: Built-in dust removal interface, reduce dust pollution during engraving, keep the working environment clean and extend tool service life.
Wide Compatibility: Adapt to various materials, realize one machine for multiple purposes, reduce equipment investment cost for your production workshop.
| Specification | Parameter |
|---|---|
| Working Area | 1300×2500mm / 1500×3000mm (Customizable) |
| X/Y/Z Axis Travel | 1300/2500/300mm |
| Spindle Type | 9KW Air Cooled ATC Spindle |
| Spindle Speed | 0 - 24000 RPM |
| Tool Changer | Linear ATC / Carousel ATC, 8/12/16 Tool Positions |
| Cutting Head | High Frequency Oscillating Knife (20000-30000 times/min) |
| Visual System | CCD Camera + Automatic Contour Scanning & Edge Following |
| Transmission Mode | X/Y Axis: Rack & Pinion, Z Axis: Ball Screw |
| Drive Motor | Servo Motor (750W/1.5KW) |
| Working Table | Vacuum Adsorption Table + T-slot Table (Dual Purpose) |
| Max Moving Speed | 30000 mm/min |
| Max Working Speed | 15000 mm/min |
| Control System | Advanced CNC Control System |
| Voltage | 380V 50Hz 3Phase / 220V |
| Applicable Materials | Wood, MDF, Acrylic, Foam, Cardboard, Leather, KT Board, Composite Panel, PVC etc. |
The machine is equipped with a dual-purpose worktable: vacuum adsorption table for light and thin materials (acrylic, KT board, foam) and T-slot table for fixing large and heavy material blocks (metal sheet, wood board). The vacuum adsorption system has strong adsorption force, which can firmly fix the material without clamping marks, and the T-slot table is easy to install clamps for holding material blocks stably. The machine also has a large Z-axis travel, which can process thick foam blocks and large-size mold blanks, meeting the needs of different processing scenarios.
This multi-functional CNC machine is widely used in advertising industry, furniture manufacturing, decoration industry, packaging industry, automotive interior production, mold making and other fields. It can realize engraving, milling, cutting, hollowing, drilling, V-grooving and other processes, truly achieving one machine with multiple functions and maximizing your equipment investment benefits.
Q1: Can this ATC CNC router with oscillating knife cut foam and hard material interchangeably?
A: Yes, it absolutely can. The machine has a heavy-duty rigid structure that supports both hard material machining (wood, acrylic) and soft material cutting (foam, cardboard). We only recommend adjusting the spindle speed and using matching toolings: high spindle speed with foam cutters for foam processing, low to medium speed with carbide cutters for metal engraving/milling, and switch to oscillating knife for dust-free soft material cutting.
Q2: What is the advantage of CCD camera in this machine?
A: The high-precision CCD camera realizes automatic visual positioning and contour following. It can scan the printed pattern on the material surface quickly, identify the cutting path automatically, and correct the material placement deviation in real time. This function is extremely important for advertising sign making, printed panel cutting and irregular material processing, which greatly reduces manual operation and scrap rate.
Q3: Is the oscillating knife cutter easy to replace and maintain?
A: Yes, the oscillating knife head is designed with quick-release structure, you can replace different blades (straight knife, round knife, V knife) in 1 minute without any professional tools. The knife head has a long service life, and the maintenance is only regular lubrication, very simple for daily use.
Q4: What materials can this multi-functional CNC machine process?
A: This machine is a real all-rounder. It can process rigid materials including wood, MDF, plywood, acrylic, PVC, solid wood board; soft materials including EVA foam, pearl cotton, corrugated cardboard, leather, fabric, KT board, foam board, composite panel and pre-printed advertising materials.
Q5: Why choose an ATC CNC router instead of a manual tool change machine?
A: The automatic tool changer can change tools in 3-5 seconds, which saves a lot of manual tool change time for complex processing tasks. It also avoids human error caused by manual tool change, ensures processing precision and consistency, and improves production efficiency by 30% - 50% compared with manual tool change machines, which is very suitable for mass production.
Q6: Does the machine have a dust collection system?
A: Yes, the machine is equipped with a standard dust removal interface that can be connected to a dust collector. This effectively reduces dust generated during engraving wood and metal, keeps the working environment clean, and also extends the service life of the spindle and tools.
Q7: Can the working area and Z-axis travel be customized?
A: Yes, we support full customization of working area (1325/1530/2030/2040) and Z-axis travel (200mm/250mm/300mm/400mm), especially for customers who need to process thick foam blocks or large mold blanks, we can customize a higher Z-axis to meet your needs.
