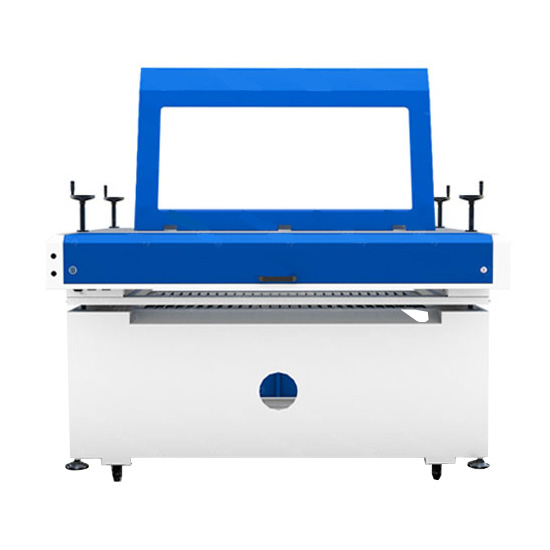

Split Type Laser Engraver for Stones Granites Marbles

The split type laser engraving machine can divide to upper and bottom part. The upper part can put onto large size stone, marble, granite and other materials directly.
What is more, after divide the machine, it can go through narrow doors.
Availability:

PDF Export

  • U-L1060S/1390S

  • UNIQUE CNC

Main features of Split Type Laser Engraver for Stones Granites Marbles

1. The split type laser engraving machine can divide to upper and bottom part. The upper part can put onto large size stone, marble, granite and other materials directly.

2. After divide the machine, it can go through narrow doors.

3. Standard machines are stepper motor driving. Fast engraving speed up to 1200mm/sec.

4. It is a whole set machine including laser tube, water cooling system, air blowing pump, exhaust fan, etc. to ensure the machine is ready to run as soon as you receive it.

Video Of The Stone Laser Engraving Machine

Specifications of dual heads laser engraving cutting machine

Model No.
U-L1060S/1390S
Working size (X * Y)

1000x600mm, 1300x900mm

Laser power
60W/80W/100W/130W/150W
Laser type
CO2 glass laser tube, wavelength 10.6μm, water-cooled
Engraving speed
0-1200mm/sec
Cutting speed
0-500mm/sec
Resetting positioning accuracy
0.01mm
Min.engraving letter
1x1mm
Voltage
220V/50HZ or 110V/60HZ
Operating temperature
0 - 45°C
Operating humidity
5-95%
Control system
Ruida system
Graphic format supported
*.plt, *.dst, *.dxf, *.bmp, *.dwg, *.ai, *.las
Software supported
CorelDraw, AutoCAD
Driving system
Stepper motor
Work table
Knife table, honeycomb table or Z-axis motorized up-down table
Red dot pointer
Included
Accessories
Water chiller, air pump, exhaust fan

Details Images of Split Type Laser Engraver for Stones Granites Marbles

1. Ruida controller and RD Works software

laser machine Ruida controller

Ruida controller equips function and number keys on the panel, makes the machine can work offline.

Color LCD display,can show the design, speed, laser power and other parameters.
Emergency button on top of the controller, can stop the machine immediately.

Current output meter on top of controller, so operators can monitor machine working condition.

It supports various vector formats like PLT, AI, DXF,DWG, also supports BMP.

The software has many language options like English,Japanese,French,German,Polish,Portuguese,Spanish,Russian,
Korean, Vietnamese,Indonesian,Italian,Turkish,Arabic and Finnish.

RD works files can plug-in Coreldraw and autoCAD, thus Coreldraw or autoCAD can operate the machine directly.


2. Well-organized electrical components

All the components passed CE certificate.

All the components are famous brand and top quality.


3. Stable and strong driving system,big and strong stepper motor connects timing belt.


4. Taiwan made guide rails, on top of strong aluminum stands.

co2 laser machine

5. Red dot pointer. The red dot pointer can show the laser dot position.


6. Pneumatic door. The door can be easily closed or opened by two pneumatic air cylinders.


7. Knife worktable

The knife worktable is suitable for putting hard materials like acrylic,wood,stone,glass and so on. The knife blade can reduce laser reflection. The knife bars are removable.


8. Honeycomb worktable

The honeycomb worktable is suitable for putting soft materials like cloth,rubber,leather and so on.


9. Z-axis motorized up-down worktable.

The Z-axis motorized up-down table is suitable for putting thick materials. This table drives by two stepper motors.



10. Rotary device for engraving and cutting columns.


11. Water chiller

Its function is cooling the laser tube. Different power laser tubes need different chillers. This is standard part of the machine.


12. Exhaust fan and pipe
Its function is remove the smell when cutting acrylic, leather, rubber and other materials.  This is standard part of the machine.


13. Air pump
This is standard part of the machine as well. Its functions are: cool the focus lens, blow away the exhaust,cool the cutting kerf.




Samples of laser engraving cutting machine


Packing & Delivery of CO2 laser engraving cutting machine
