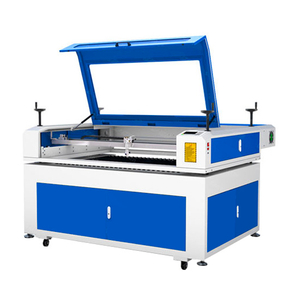

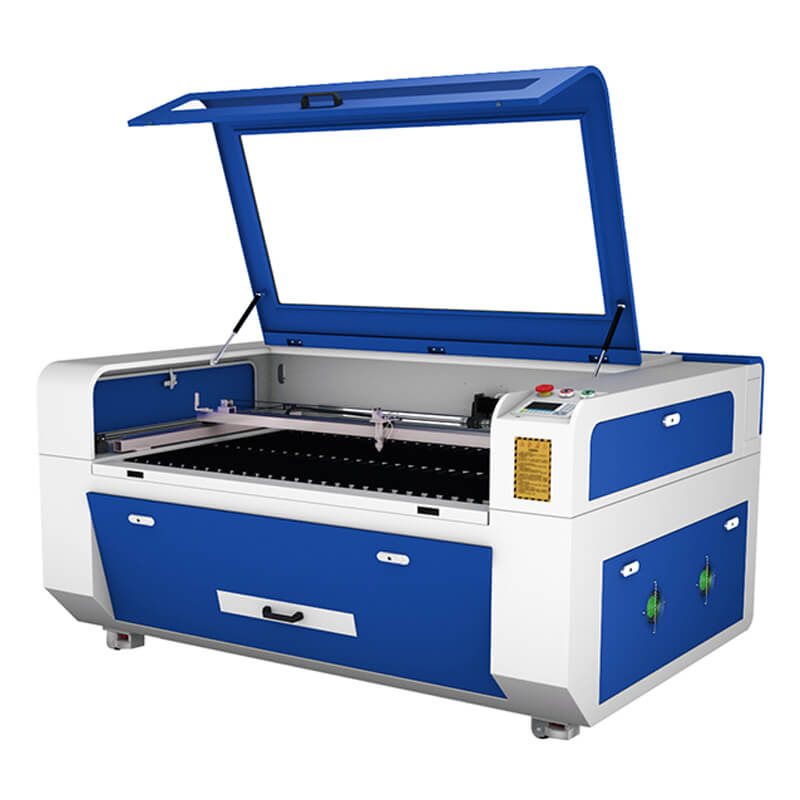

CNC Laser Engraving Cutting Machine for Non-metal Materials

Unique CNC non-metal laser cutting engraving machine is our basic type CO2 laser engraving cutting machine. It is widely used in cutting or engraving acrylic,wood,plywood,MDF,fabric,cloth,rubber,leather,glass,stone,etc. Optional cutting sizes are 600*400mm,900x600mm,1300x900mm,1400x900mm and1600x1000mm. CO2 laser tube power from 60W to 180W optional.

Availability:



Inquire PDF Export

Model:
U-L6040/9060/1390/1490/1610
Brand:
UNIQUE CNC

Main features of CNC Laser Engraving Cutting Machine for Non-metal Materials:

1. Unique CNC non-metal laser cutting engraving machine is our basic type CO2 laser engraving cutting machine.

2. CO2 laser tube power from 60W to 180W optional. Applicable for engraving and cutting various nonmetallic materials, like acrylic, plexiglass, wood, MDF, rubber, PVC, leather, paper, stone, glass, etc. 60-100W can do both engraving and cutting. Higher laser power like 130W and above mainly do cutting work.

3. Standard machines are stepper motor driving. Fast engraving speed up to 1200mm/sec.

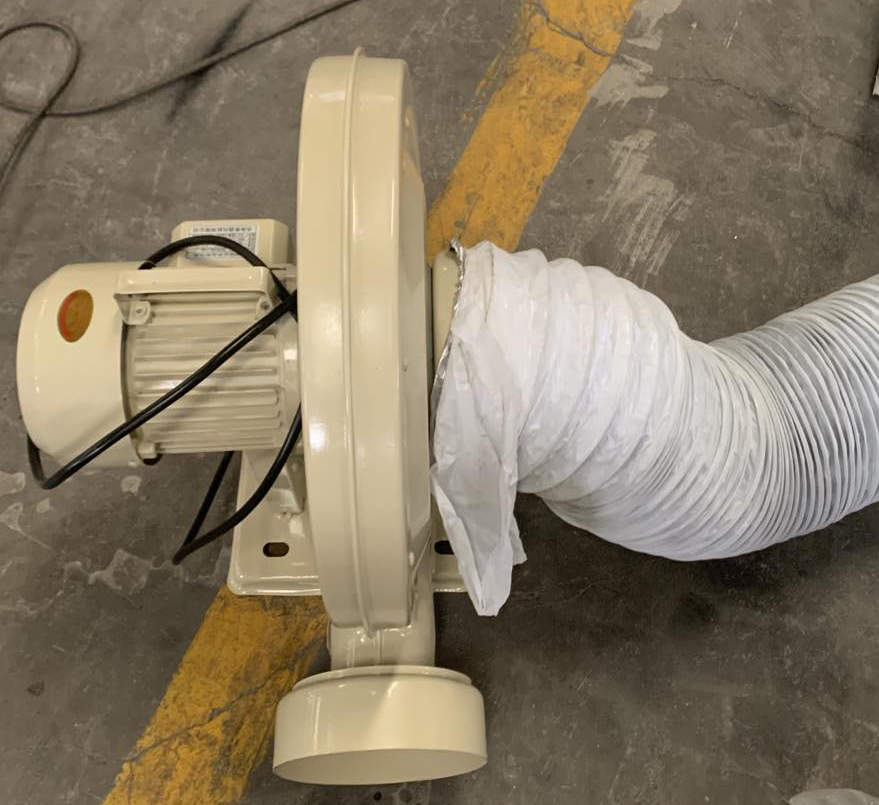

4. The multifunctional acrylic wood mdf fabric leather rubber laser cutting engraving machine is a whole set machine including laser tube, water cooling system, air blowing pump, exhaust fan, etc. to ensure the machine is ready to run as soon as you receive it.

Specifications of dual heads laser engraving cutting machine:

Model No.	U-L6040/9060/1390/1490/1610
Working size (X * Y)	600400mm/900600mm/1300900mm/1400900mm/1600*1000mm
Laser power	60W/80W/100W/130W/150W/180W
Laser type	CO2 glass laser tube, wavelength 10.6μm, water-cooled
Engraving speed	0-1200mm/sec
Cutting speed	0-500mm/sec
Resetting positioning accuracy	0.01mm
Min.engraving letter	1x1mm
Voltage	220V/50HZ or 110V/60HZ
Operating temperature	0 - 45°C
Operating humidity	5-95%
Control system	Ruida system
Graphic format supported	.plt, .dst, .dxf, .bmp, .dwg, .ai, *.las
Software supported	CorelDraw, AutoCAD
Driving system	Stepper motor

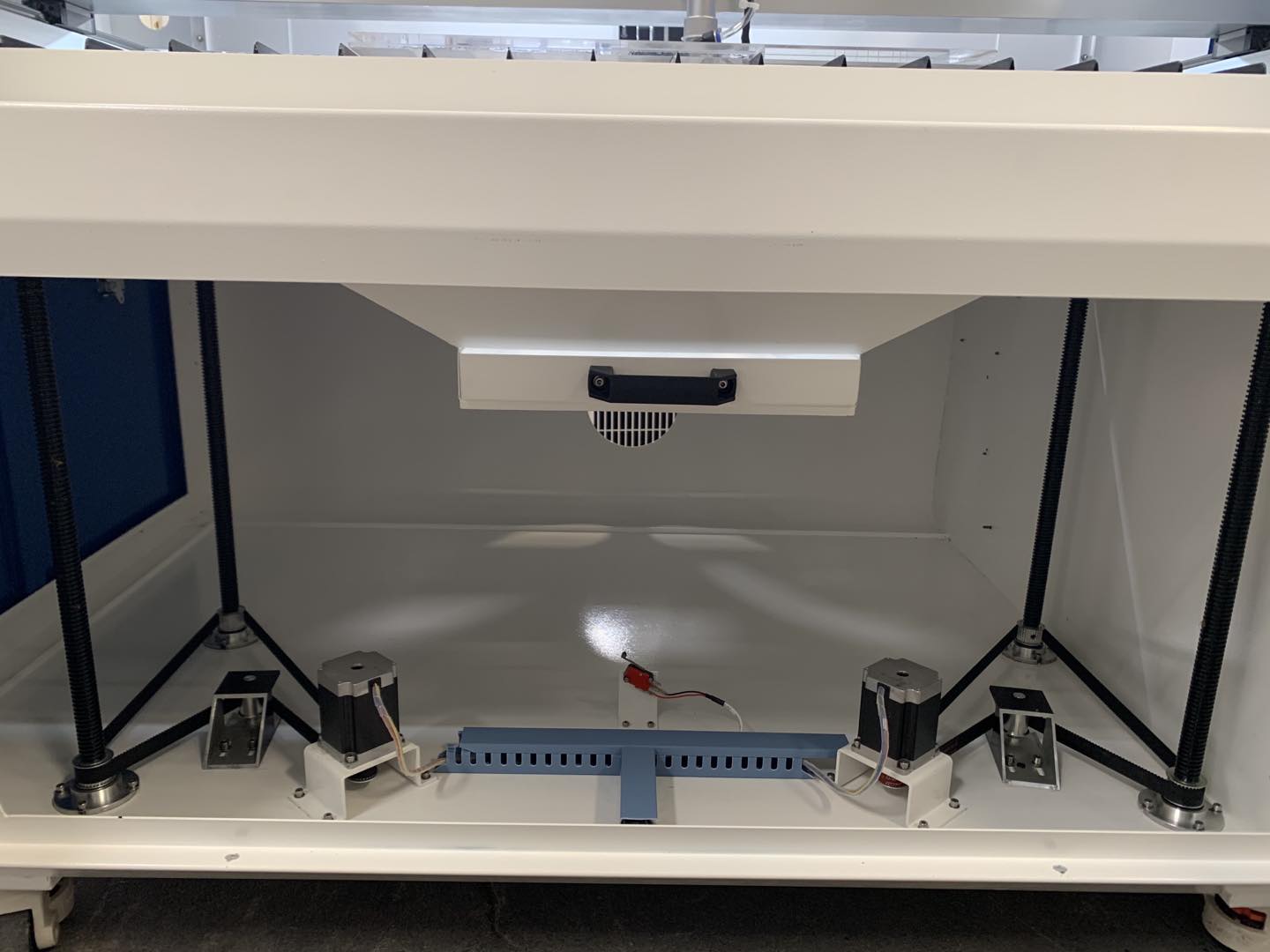

Work table	Knife table, honeycomb table or Z-axis motorized up-down table
Red dot pointer	Included

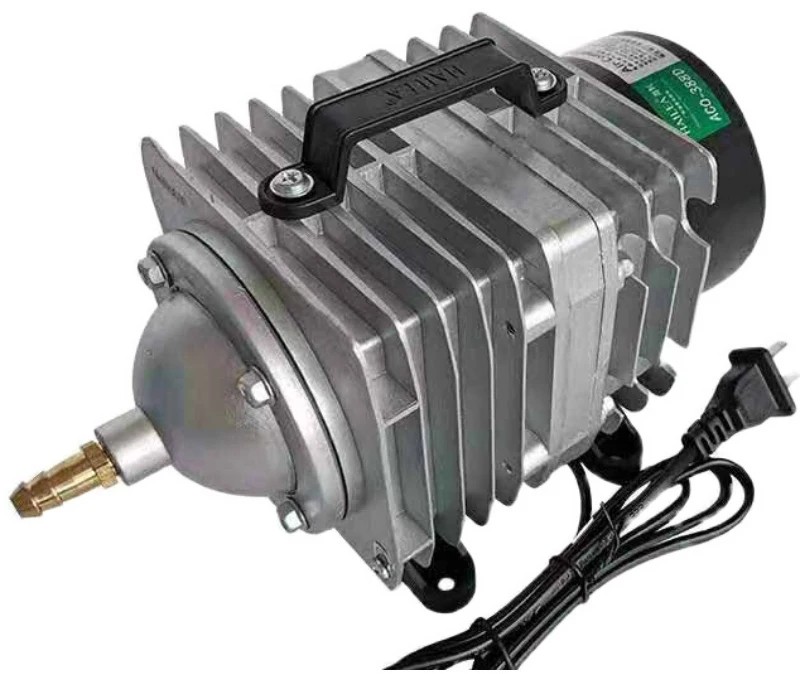

Accessories	Water chiller, air pump, exhaust fan

Details Images of Unique CNC two heads laser cutting engraving machine

1. Ruida controller

Ruida controller for laser machine

Ruida controller equips function and number keys on the panel, makes the machine can work offline.

Color LCD display,can show the design, speed, laser power and other parameters.

Emergency button on top of the controller, can stop the machine immediately.

Current output meter on top of controller, so operators can monitor machine working condition.

2. RD Works software

It supports various vector formats like PLT, AI, DXF,DWG, also supports BMP.

The software has many language options like English,Japanese,French,German,Polish,Portuguese,Spanish,Russian,

Korean, Vietnamese,Indonesian,Italian,Turkish,Arabic and Finnish.

RD works files can plug-in Coreldraw and autoCAD, thus Coreldraw or autoCAD can operate the machine directly.

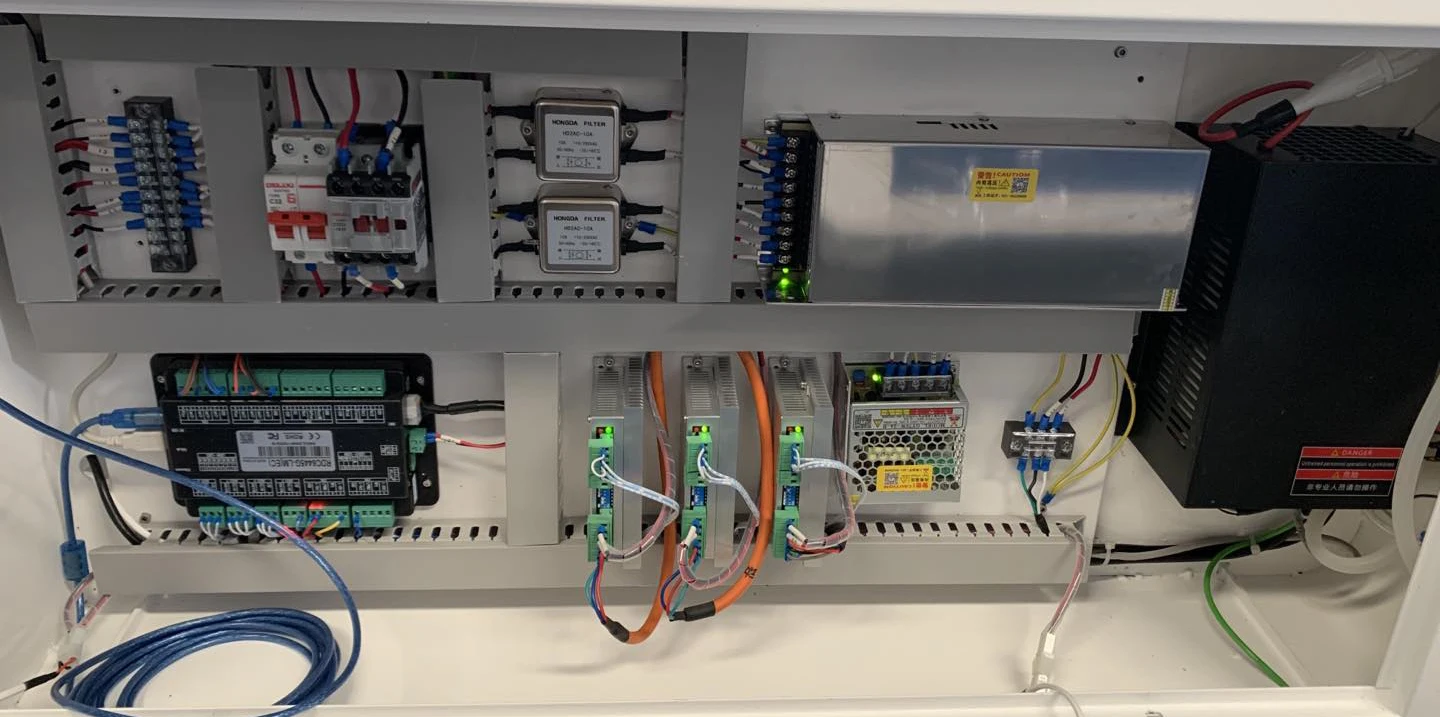

3. Well-organized electrical components

All the components passed CE certificate.

All the components are famous brand and top quality.

4. Stable and strong driving system,big and strong stepper motor connects timing belt.

5. Taiwan made guide rails, on top of strong aluminum stands.

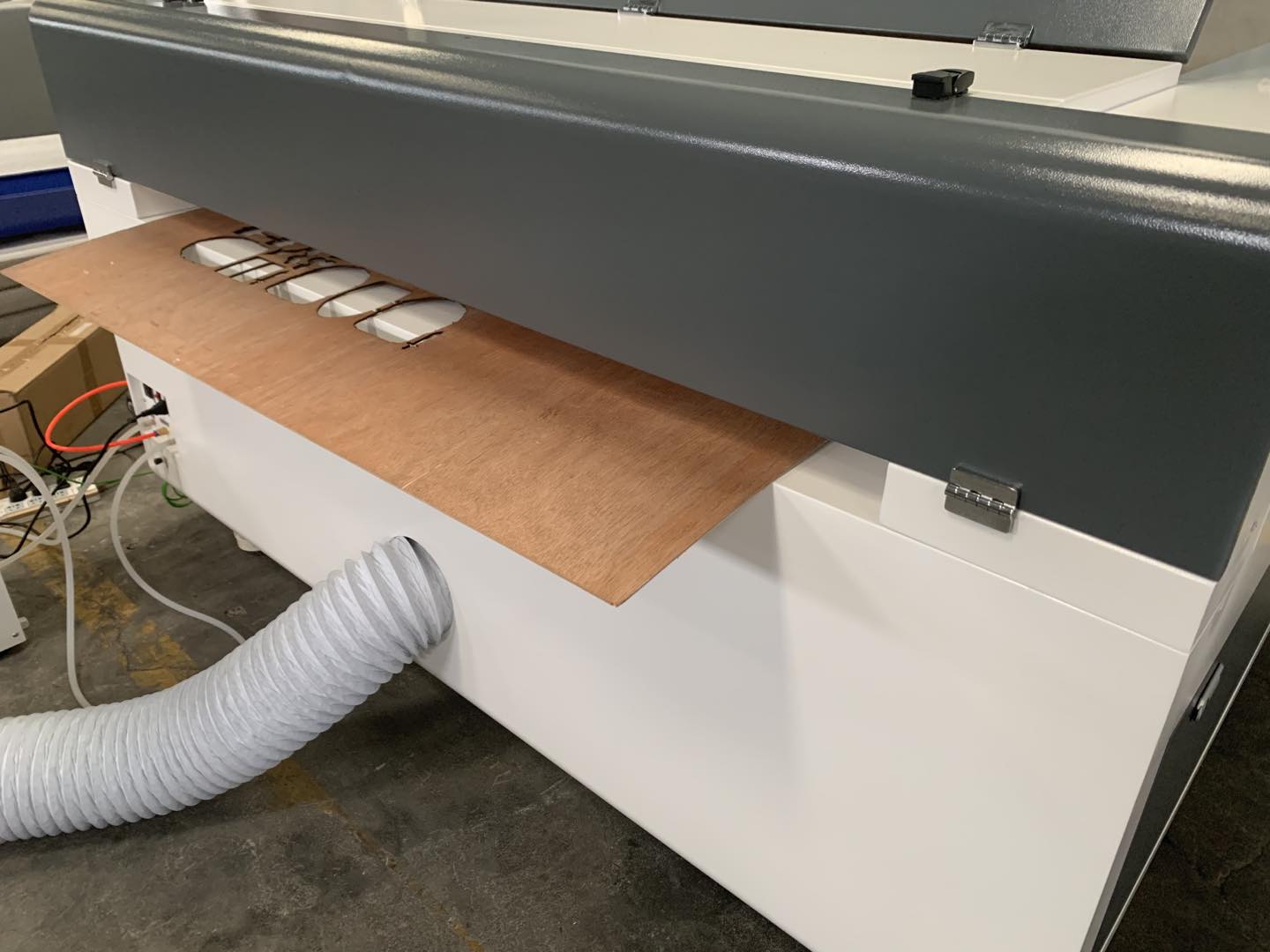

6. Materials can pass through the machine body.The back and front through design makes the machine can load bigger materials.

7. Red dot pointer. The red dot pointer can show the laser dot position.

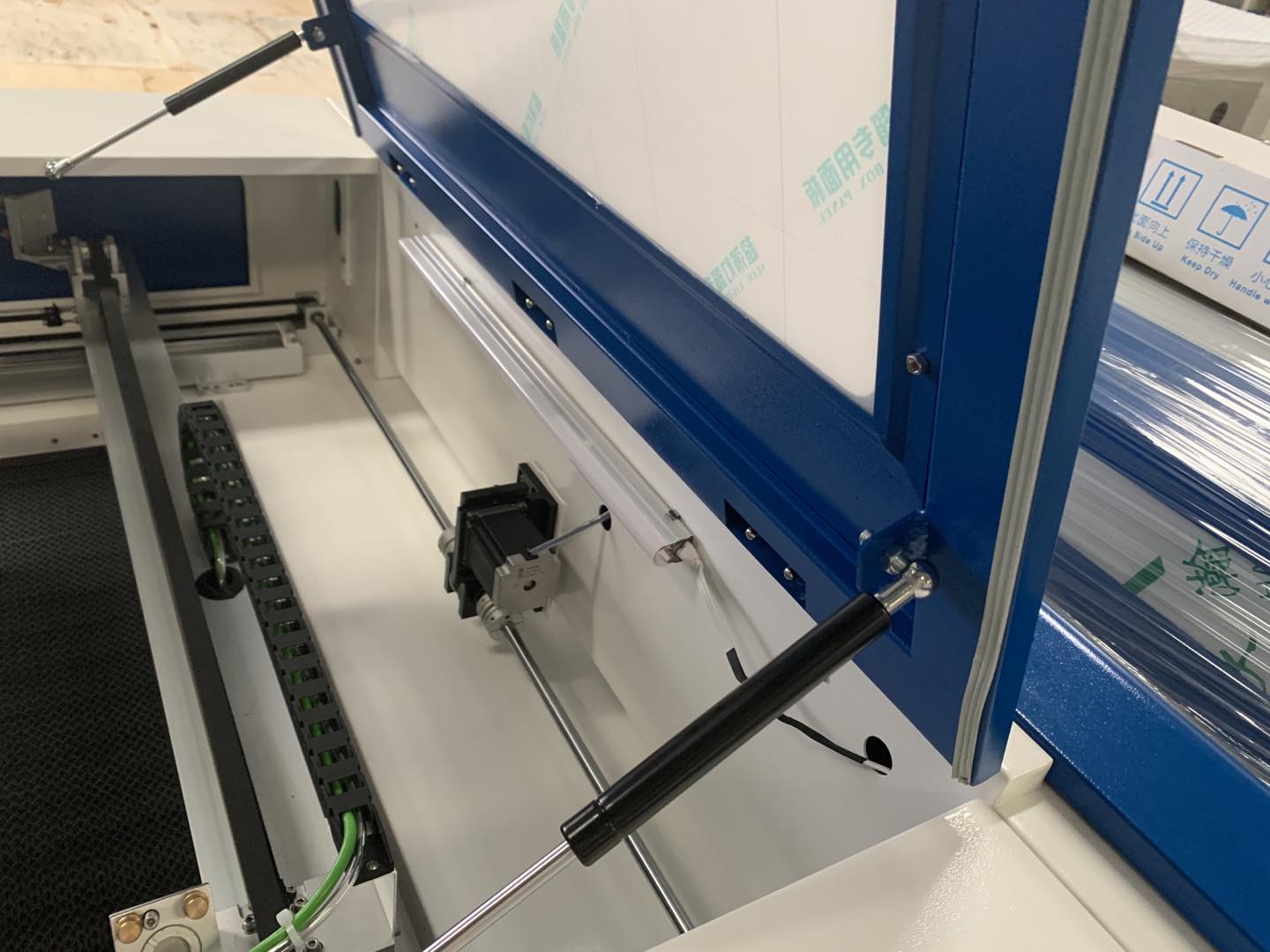

8. Pneumatic door. The door can be easily closed or opened by two pneumatic air cylinders.

9. 2 in 1 wheels

The four wheels can move the machine easily and fix the machine steady.

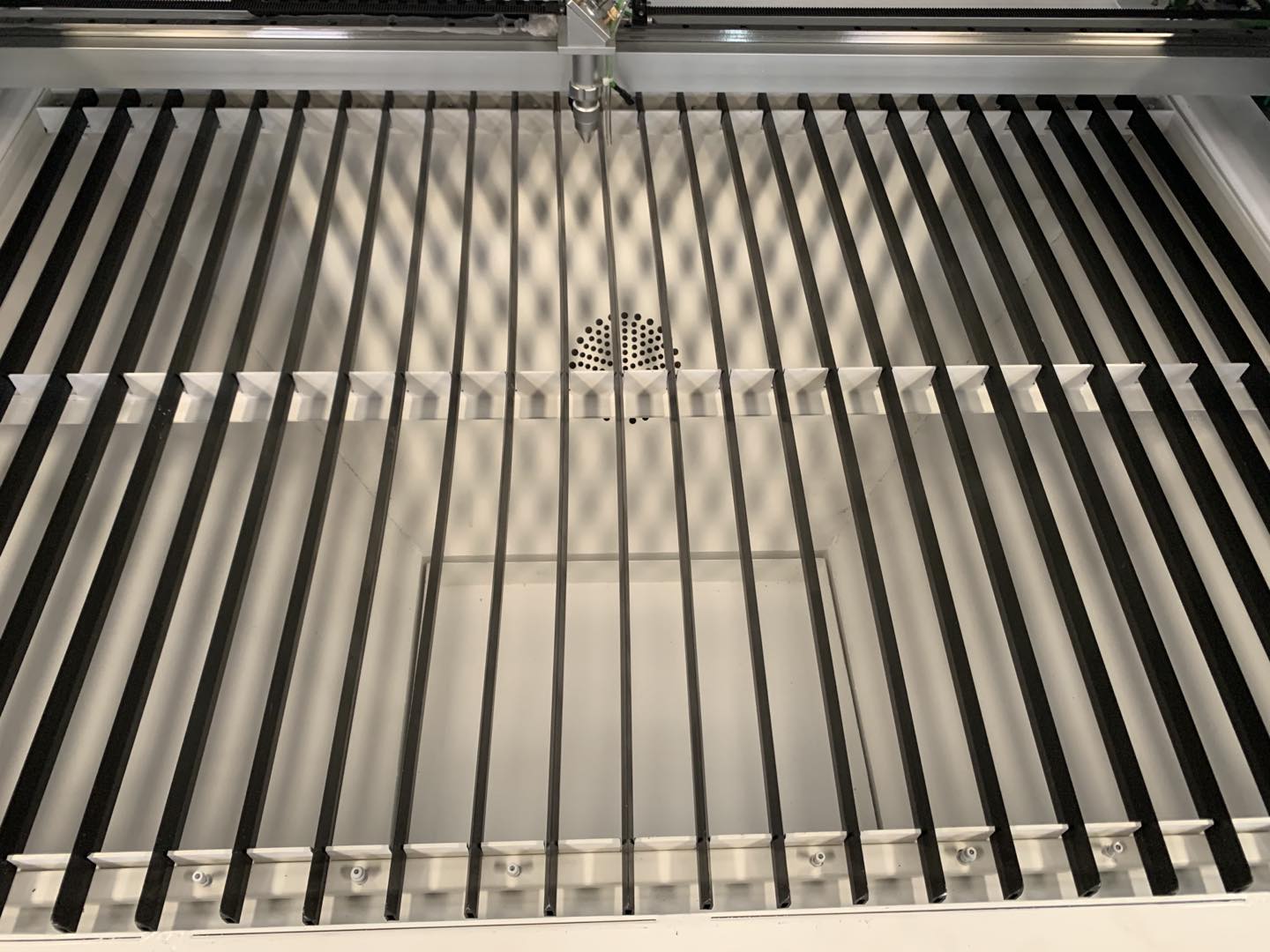

10. Knife worktable with down drawer

The knife worktable is suitable for putting hard materials like acrylic,wood,stone,glass and so on. The knife blade can reduce laser reflection. The knife bars are removable. Under the knife table,there is a drawer,it can collect the cut off pieces.
