U-L1390C/1325C
UNIQUE CNC

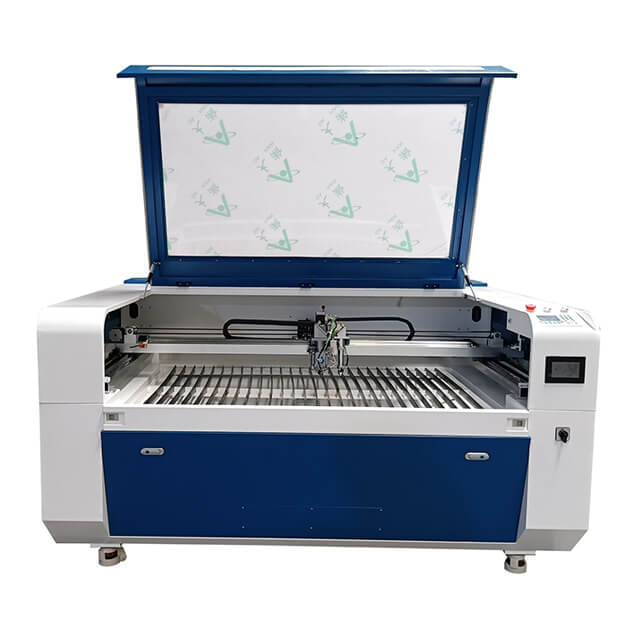

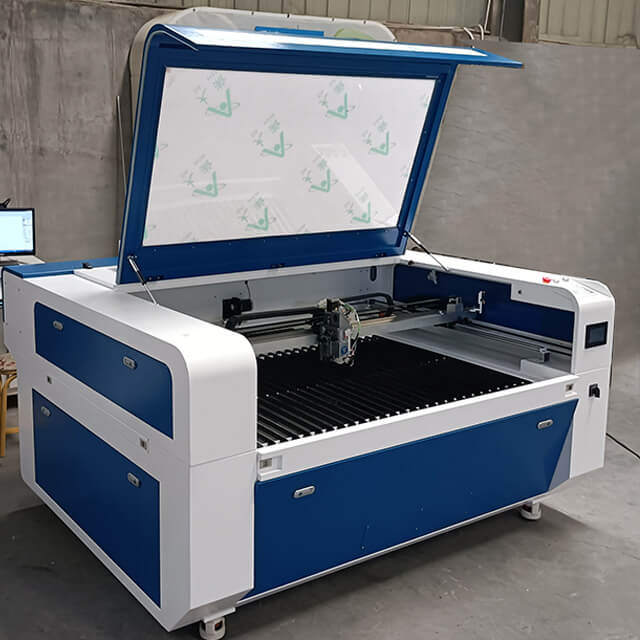

The CO2 metal and nonmetal laser cutting machines are usually applied to the fields: signage (metal & acrylic signs), sheet metal work, artworks, crystal items, paper cut crafts, decoration, photo frame, leather processing, and packing industry.
Metal: thin metal sheets like stainless steel, carbon steel, galvanized steel, and more.
Non-metal: acrylic, plywood, MDF, glass, leather, wood, and other materials.
• Enclosure design. This full enclosed design gives users significant benefits. First, it can protect the operator from personal injury; second, it can prevent the smoke generated by cutting from being discharged into the working environment.
• Compact footprint. Along with a small cutting size, it has a small footprint. Therefore, it is a good choice for those users who have space constraints.
• Excellent mixed cutting ability: it can cut stainless steel, carbon steel, acrylic, wood, plywood,traffolyte,rubber,plexglass and so on.
| Model No. | U-L1390C/1325C |
| Working size (X * Y) | 1300*900mm/1300*2500mm |
| Laser power | 60W/80W/100W/130W/150W/180W/300W |
| Laser type | CO2 glass laser tube, wavelength 10.6μm, water-cooled |
| Engraving speed | 0-1200mm/sec |
| Cutting speed | 0-500mm/sec |
| Resetting positioning accuracy | 0.01mm |
| Min.engraving letter | 1x1mm |
| Voltage | 220V/50HZ or 110V/60HZ |
| Operating temperature | 0 - 45°C |
| Operating humidity | 5-95% |
| Control system | Ruida system |
| Graphic format supported | *.plt, *.dst, *.dxf, *.bmp, *.dwg, *.ai, *.las |
| Software supported | CorelDraw, AutoCAD |
| Driving system | Stepper motor |
| Work table | Knife table, honeycomb table or Z-axis motorized up-down table |
| Red dot pointer | Included |
| Accessories | Water chiller, air pump, exhaust fan |
1. Ruida controller
Ruida controller equips function and number keys on the panel, makes the machine can work offline.
Current output meter on top of controller, so operators can monitor machine working condition.
2. RD Works software
RD works files can plug-in Coreldraw and autoCAD, thus Coreldraw or autoCAD can operate the machine directly.
3. Well-organized electrical components
All the components are famous brand and top quality.
4. Stable and strong driving system,big and strong stepper motor connects timing belt.
5. Taiwan made guide rails, on top of strong aluminum stands.
6. Materials can pass through the machine body.The back and front through design makes the machine can load bigger materials.
7. Red dot pointer. The red dot pointer can show the laser dot position.
9. 2 in 1 wheels
10. Knife worktable with down drawer
11. Honeycomb worktable
12. Z-axis motorized up-down worktable.
14. Water chiller
