U-PC1530S
UNIQUE CNC
Portable Heavy frame CNC Flame/Plasma Cutting Machine Features
Equips big torque stepper motor and driver with features of function detecting, high running precision, wide speed range and short speed up time.
High-precision HIWIN rail linear guide, smooth movement to ensure that the CNC oxy fuel cutting machine tools with high precision, small cutting gap, no residua.
Excellent performance on cutting illuminated letters for advertising and channel letters on sheet metal.
Perfectly design, equipped with the best machine accessories to minimize the failure rate preferred.
The portable CNC flame cutting machine supports G-code files of ARTCAM, Type3 software. It also supports DXF files of AUTOCAD by transfer software. The control system supports U disk file transfer.
All kinds of metal materials cutting such as steel, copper, aluminum, stainless steel, iron plate, aluminum plate, galvanized sheet, white steel plate, titanium plates, and so on.
Technical Parameters of Cost-effiective CNC Plasma Cutting Table
Model | U-PC1530S |
Working area | 1500*3000mm |
Head | Plasma cutting torch Options: Flame cutting, Marking, Drilling |
Usage | Metal cutting industry |
Nesting software | Fastcam /Starcam |
THC | Torch Height Controller |
Repeat positioning accuracy | ±0.05mm |
Process precision | ±0.3mm |
Transmission system | Square guide rail |
Rack pinion | |
Max. cutting speed | 6000mm-90000mm/min |
Working voltage | AC380 /220V 3PH 50 /60HZ |
Control system | Starfire /Fangling control system |
Instruction format | G code |
Drive system | Stepper motor and drivers Optional: Servo motor and drivers |
Drive mode | Double side driving motor |
File output mode | USB interface |
Plasma source | 63A/100A/120A/160A/200A/300A optional |
Cutting thickness | 0-30mm by plasma 10-300mm by flame |

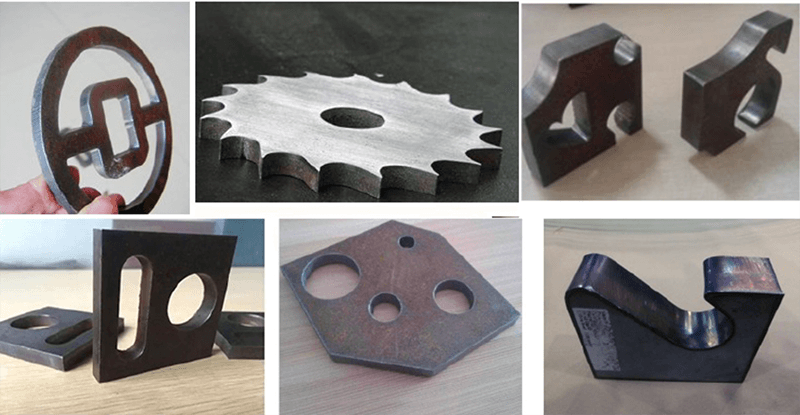

Samples Made By CNC Plasma Cutter
