U-PC1530R
UNIQUE CNC
It is an integrated cnc plasma cutting machine with dual-purpose, it can cut mild steel, stainless steel, aluminum, brass, and copper pipe, tube and plate. To get quality cut on uneven surfaces, the automatic torch height control system is equipped with the plasma cutting table. This steel pipe and sheet cutting plasma table adopts water table,which has the best performance to remove the smokes. The pipe cutting machine is designed to cut pipes to 300mm (11 4/5") in diameter. Each of our plasma cutting machines can be configured for plasma cutting, oxy-fuel cutting or both.
Industrial Strength Metal Sheet And Pipd Plasma Cutting Machine
Our customers put their Unique CNC pipe and sheet cutting machines to many tests. We serve clients from a variety of industries including:
Metal furniture manufacturing
Sports equipment manufacturing
Amusement ride manufacturing
qStorage tank fabricating
Steel fabrication
Process piping
And more
Demo Video Of The Dual-purpose Sheet And Pipe Plamsa Cutting Table
Unique Design Of CNC Tube And Plate Plasma Cutting Machine

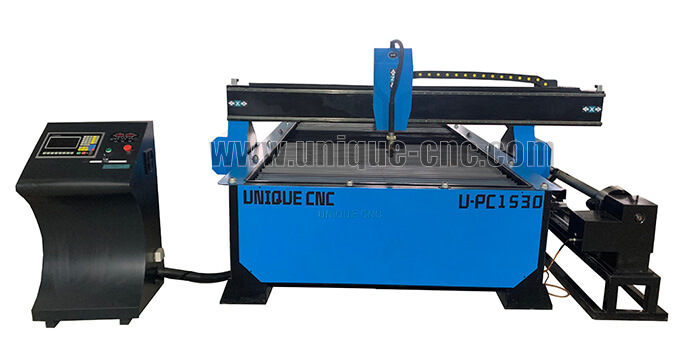

This dual purpose cnc plasma cutting machine can achieve high quality cutting of metal sheet and tubes in the same table.

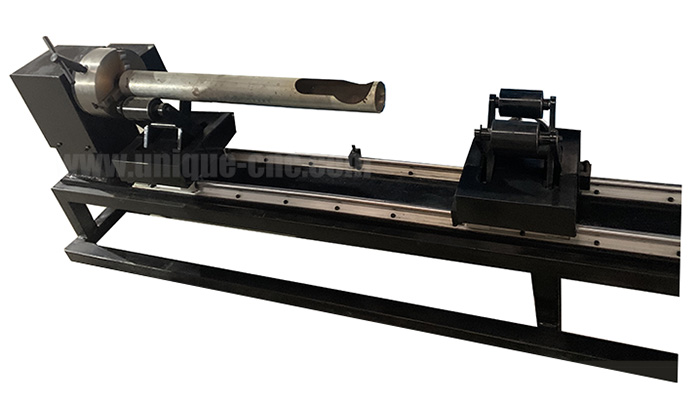

The pipe cutting table is a rotary device located at the side of the flat table, convenient to load and unload materials. The 3-jaw chuck connects to the drive motor through a worm reducer. Round pipes are hold by the 3-jaw chuck and supports by 2 movable strong shoulders.
The plate cutting table is blade table, under balde table is water table,which has better performance for removing the smokes.
The standard machine equips with one plasma torch. As options, you can also add a flame torch, drill head or marking head at side of the plasma torch.

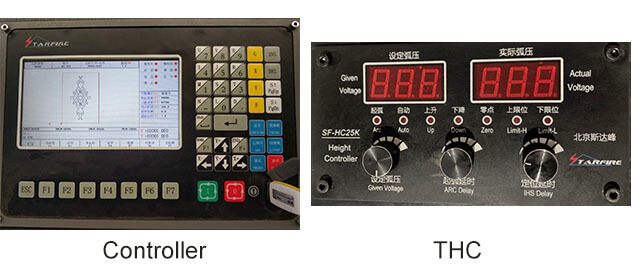

Advanced controller and THC (torch height controller)
Controller parameters
Highest Speed: 24m/min
Control Accuracy: 0.001mm
I/O Control: input (optoelectronic isolation)*16, output (relay output)*8
Store Space: 4G and it supports USB for files uploading
Programming: G code
Display: 7" color LCD
Advantages of Round Pipe And Metal Plate CNC Plasma Cutter
Heavy duty structure, full steel welded frame for longest lifespan and stable performance
Combined metal plates and round pipes cutting
Water table
Lineare square guide rails
Lubricate system for rails
Advanced controller and THC
Well organized and top quality components inside control cabinet
Steel Pipe and Sheet CNC Plasma Cutting Machine Parameters
Model | Unique CNC U-PC1530R CNC plasma cutting machine |
Function | Metal sheet and round pipe cutting |
Control way | CNC |
Metal sheet cutting size | 5x10ft (1500x3000mm) |
Metal pipe cutting size | L: 3000mm D: 300mm |
Metal sheet cutting table | Water table + sawtooth table |
Metal pipe cutting tabel | 3 jaws chuck with supports |
Plasma source | 63A-400A |
Torch | Plasma torch (Options: flame cutting torch) |
Cutting speed | 0-4,000mm/min |
Control system | Starfire with colorful display with gallery |
Communication interface | USB |
Command | International standard G code |
Nesting software | Starcam or Fastcam |
Transmission | Lineare square guide rails, rack and pinion |
Driving system | Stepper motors (Option: servo drving) |
Cutting table working voltage | 220V/1 Phase |
Plasma source working voltage | 380V/220V |
Machine size | 3700x2500x1500mm |
Gross weight | 1400kg |
