U-PC1530P
UNIQUE CNC
Parameters Of the Dual Drive CNC Plasma Cutting Machine
| Items | Parameters |
| Product Name | Portable CNC Plasma Cutting Machine |
| Machine Voltage | Singal phase220V,50HZ |
| Plasma power Voltage | Three Phase 380V,50HZ |
| Cutting mode | Plasma+Flame |
| Effective cutting range(mm) | 1500mm×3000mm or customized |
| Cutting speed(mm/min) | 50-3500mm/min |
| Plasma power | Huayuan LGK-65A/100A/120A/200A/300A or Hyperthem 80A/105A/125A optional |
| Plasma cutting thickness | According to power source |
| Moving precision | ±0.2mm/m |
| Cutting system | Fangling F2100B |
| THC | Fangling F1620 |
| Software | Starcam |
| Total weight(kg) | 140KGS |
| Emergency stop | Yes |
| Working temperature | -5~45℃ |
| Relative humidity | <95% No condensin |

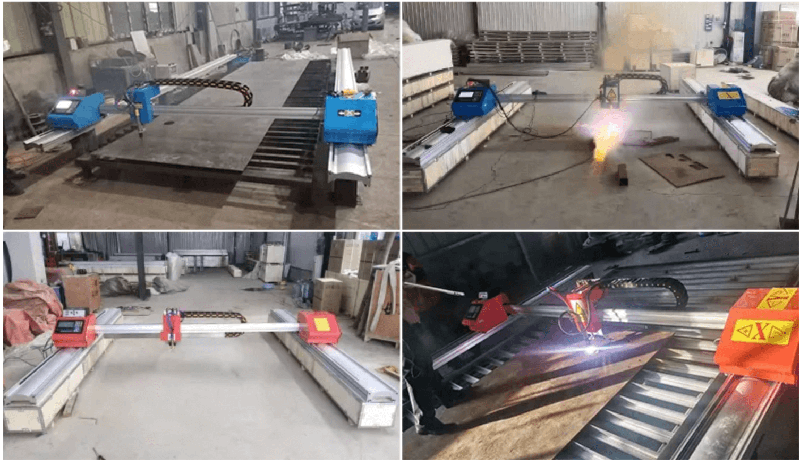

Cases
