Metal Sheet And Tube Cnc Fiber Laser Cutting Machine

This metal sheet and tube fiber laser cutter is a type of automatic CNC laser metal cutting system not only for metal sheets and plates with different thickness, but also for metal pipes and tubes with different shapes. Sheets cutting size is 1500x3000mm while steel tube cutting length is 6m.

PDF Export

  • U-F3015C


Our U-F3015C metal plates and pipes fiber laser cutting machine includes:

✔ 1000w to 6000w Raycus or Max Fiber Laser Source

✔ 20 ft (6 meters) Pipe's cutting System

✔ 10' x 5' ft Working Area (1500x3000mm)

✔ Max. Acceleration 1.5G

✔ CypCut Professional Control Software with Nesting Function

✔ Raytools Dynamic Autofocus Laser Head (Swiss Brand)

✔ Yaskawa Japanese Servo Motor System

✔ Industrial Electronic Refrigerator Chiller

✔ Industrial Grade Blower

✔ PC with Pre-Installed System

✔ Exchange table is optional

Description of our laser metal cutting machine:

Unique CNC Laser Metal Cutter Model U-F3015C has 10x5' full sheet and pipes capacity. It offers fast and stable Japanese Yaskawa servo driving motors, and Raytools dynamic auto-focus.

Our lasers have been built under our CNC (Computerized Numerical Control) standards & tolerances, using strict manufacturing processes that guarantee maximum stability and minimum wear and tear of its components throughout its lifetime. Our machines can operate 24/7. The optical system has famous brand lens that has been optimized for outstanding performance during cutting and engraving on different materials.

Fiber metal cutter details and specifications:

Laser source: Raycus,Max or IPG 1000w to 6000w Fiber Laser Source.

Working: 10 x 5' ft. Full Sheet capacity

Pipe`s cutter system: Supports 20' ft pipes. Adjustable to cut 20 to 220mm diameter. It adopts front and rear pneumatic clamps and can modulate the center automatically.

Raytools (Swiss Brand) dynamic auto focus system: Sometimes metal sheets are not completely flat. Our “Auto Focus” system is highly efficient and regulates the focus length controlled by a sensor on the laser head automatically. This sensor detects the gap between the nozzle and the material surface at all times. As the cutting process begins the sensor will track the contour of the metal and adjust the nozzle in the z-axis keeping a constant focus point assuring clean and polished edges.

YASKAWA (Japanese Brand) servo motor system: High precision, detailed capacity, and speed are key elements to obtain the best quality when laser cutting, this is why Unique CNC incorporates Japanese Yaskawa servo motors on the steel X and Y axis as well as digitally controlled Drivers. Servo technology is known for its high precision, smooth movements, and the ability to operate without cogging at a high speed.

PC,Software and interface: Cypcut or Weihong Last Version Included. Through a delicate and algorithmic own adaptation, our software uses Bezier's algorithmic curve to help to delineate vector edges in motion, while the speed increases it gets better curving within the range that is working. This algorithm can also avoid incineration or " burning" of material during the cutting process allowing to have a smoother finish on the cut pieces.

Water chiller unit (Included): The electronic water chiller helps to regulate the laser temperature while in operation by keeping the water at room temperature. This is a highly efficient unit that requires minimum maintains.

Oxygen-Nitrogen-air valve: This system features oxygen, nitrogen, and air valves to regulate the gas flow, a filtration system that prevents water and dirt molecules to reach the lens, a smart air/oxygen flow system, that allows you to control when the gas comes out and an oxygen pressure indicator to make sure you are getting the right pressure you need to keep the best quality when cutting metal.

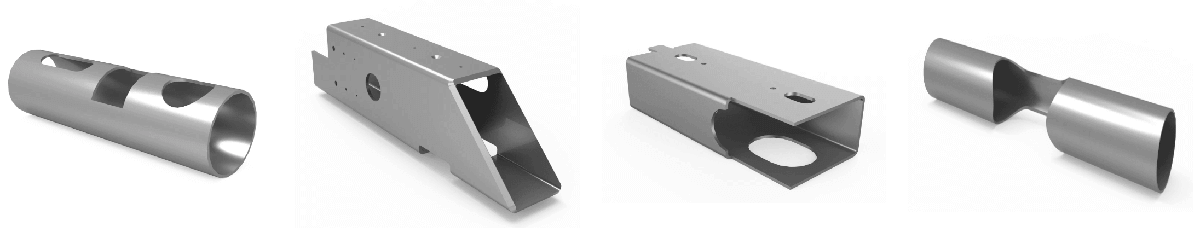

CNC Fiber Pipe Cutting Effect

pipe cutting effect
