U-FL1530C
UNIQUE CNC
Advantages of the combined CNC fiber laser and plasma cutting machine:
1). Two machines combined in one, save cost.
2). It contains fiber laser and plasma cutting. When need fine cutting of steel use the fiber laser, when need to cut aluminum or copper or thick steel, use the plasma.
3). Compare with pure plasma machine, this machine has better plasma cutting precision due to the high-configured guide rails,motors and so on.
4). Taiwan made guide rails and gear racks, Japanese servo motors, all the components are famous and best quality.
5). Professional fiber laser cutting head with auto following system, plasma cutting head with THC (torch height control).
6). Auto lubrication for convenient maintenance.
Demo video of the CNC fiber and plasma combined metal sheet cutting machine:
Technicial parameters of the CNC fiber laser and plasma cutting machine:
| Model No. | U-FL1530C fiber laser and plasma metal cutting machine |
| Fiber laser power | 1000W,1500W, 2000W |
| Plasma source power | China Huayuan 63A/100A/120A/160A/200A/300A US Hypertherm 45A/85A/105A/125A/200A |
| Cutting area | 1500x3000mm |
| Transmission type | Dual gear rack transmission |
| Driving system | Servo driving |
| Control system | Two control system, one for fiber while the other for plasma |
| Cutting thickness | Depends on the fiber laser or plasma power |
| Assisting gas | Compressed air, oxygen and nitrogen |
| Cooling mode for the fiber laser | Industrial water chiller |
| Working voltage | 220V/380V |

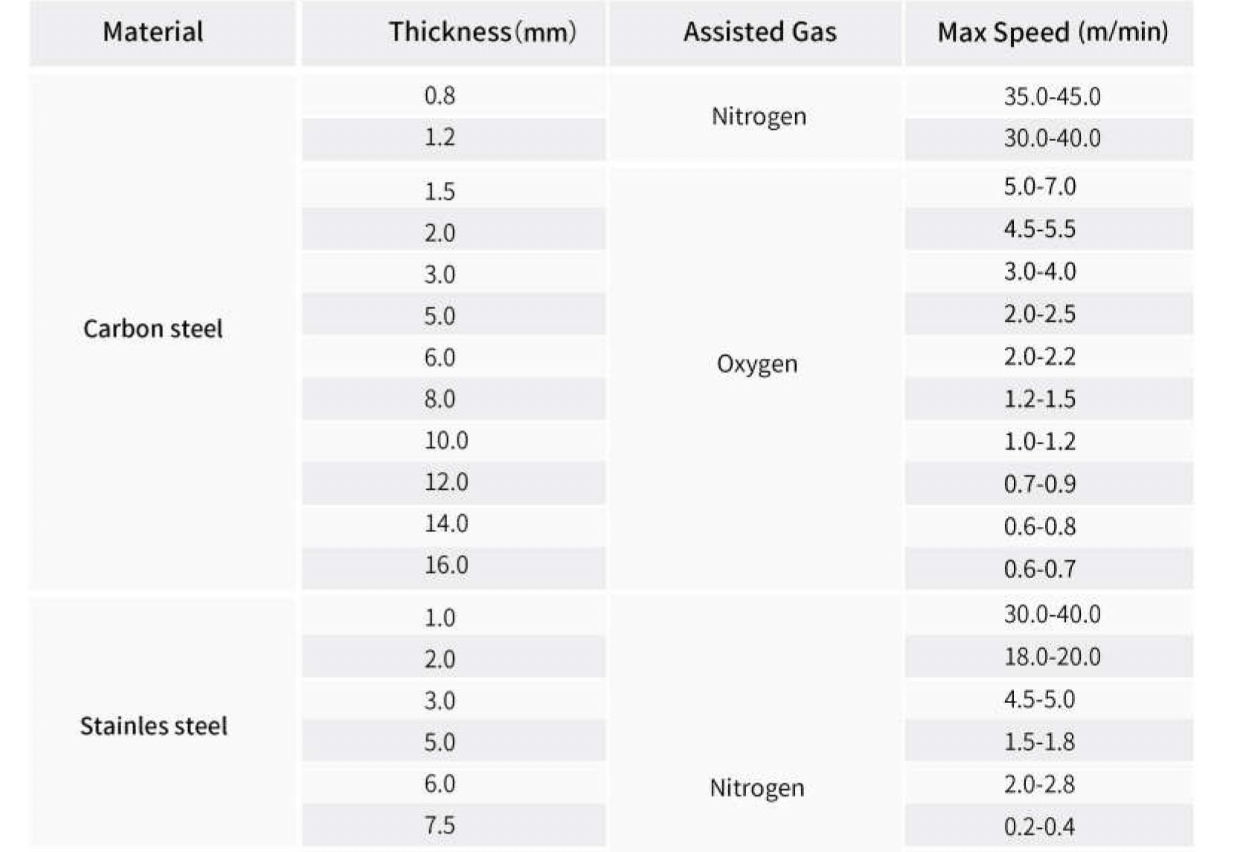

1500W fiber laser cutting thickness

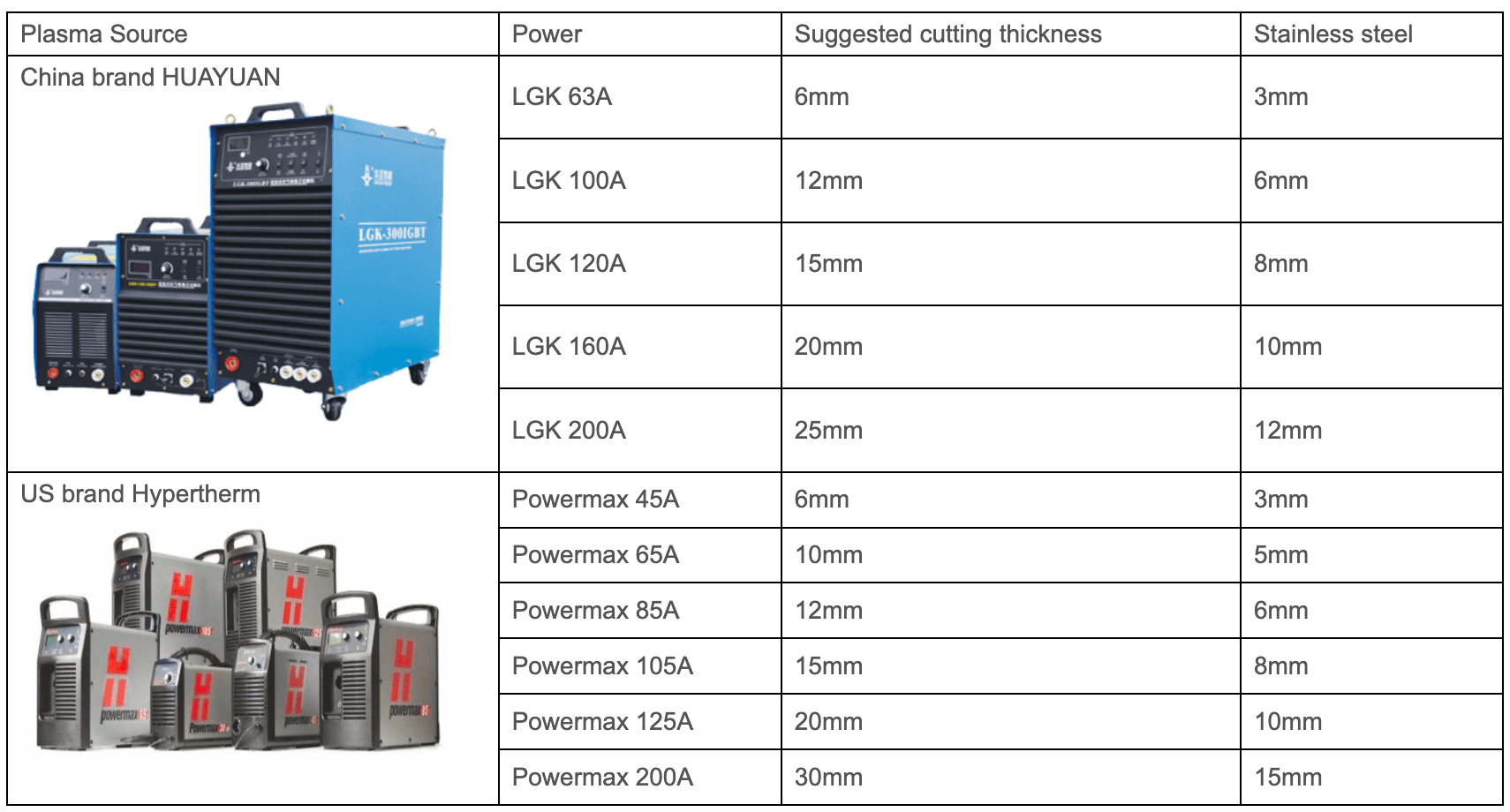

Plasma cutting thickness

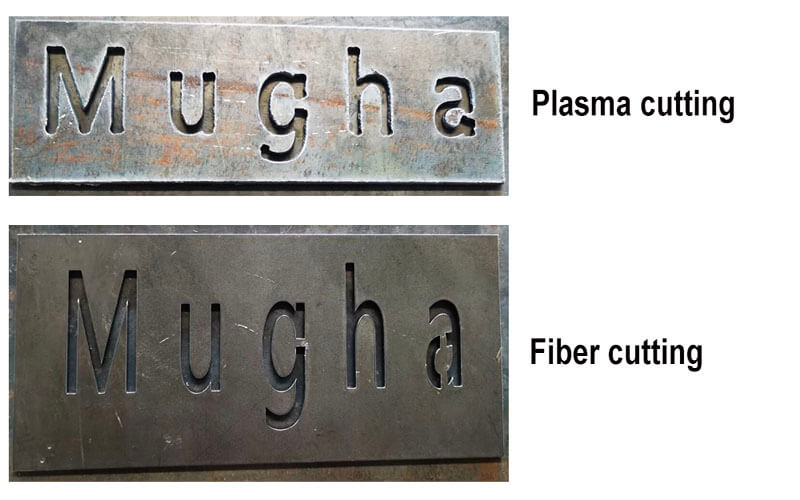

Metal fiber cutting and plasma cutting samples:
Machines in Unique CNC Factory
