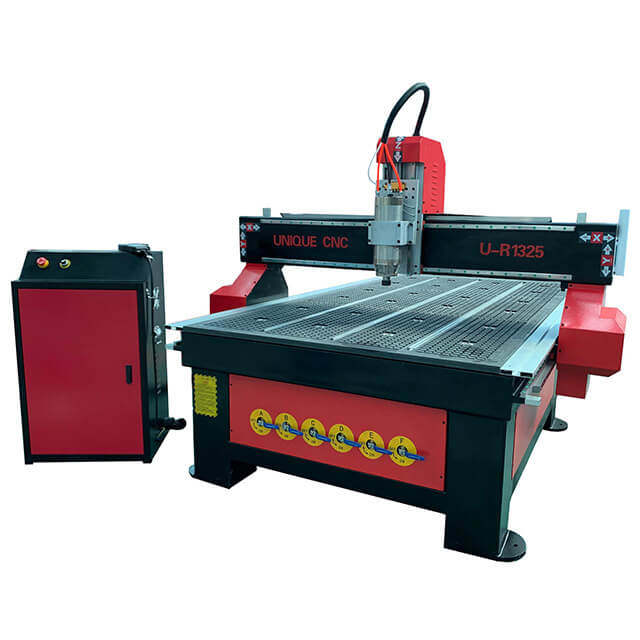

U-R1325
UNIQUE CNC
The U-R1325 three axis CNC Router, the most cost-effective model, is suitable for small shops but it still has great performance for wood, aluminum, PVC, acrylic, composites, foam etc. This machine features welded steel frame, helical racks to provide smooth motion and tight control for precision and quality cutting and carving. The offline DSP controller can set the parameters easily.
Item | Standard features | Options |
Bed structure | All steel tube welded | |
Cutting area | 4'x8' (1300x2500mm) | 4'x4' (1200x1200mm),5'x10' (1500x3000mm), 6 1/2'x10' (2000x3000mm), 6 1/2'x13' (2000x4000mm) |
Z feeding height | 7 4/5" (200mm) | 11 4/5" (300mm) |
Transmit | X and Y axis: helical rack and pinion Z axis: ballscrews Linear square guide rails | |
Driving | Stepper driving | AC Servo |
Spindle | 4.5KW | 3.0KW/5.5KW/6.0KW/9.0KW, water cooled or air cooled |
Controller | DSP | Mach3/Ncstudio/Syntec |
Table | T-slot + Vacuum table | Water tank table |
Dust collect | Included | |
Compatible code | G code | |
Voltage | 220V/380V |
Wood,MDF,plywood,etc
Acrylic and other plastic
Aluminum,Alucobond,ACP,etc
Foam
Woodworking
Sign making
Arts and crafts
Fabrication
