4 Axis Round & Square Steel Tube Cutting CNC Plasma Machine For Sale

The U-PC6000T CNC Plasma Cutting Machine is ideal for cutting round, square and rectangle steel tubes. It equips with single plasma torch, standard cutting length is 6000mm, diameters can be 230mm, 320mm or 400mm. With servo driving, it features excellent acceleration and deceleration.
Availability:

PDF Export

  • U-PC6000T

  • UNIQUE CNC

The U-PC6000T CNC Plasma Cutting Machine is ideal for cutting round, square and rectangle steel tubes. It equips with single plasma torch, standard cutting length is 6000mm, standard machine maximum diameter is 300mm (bigger diameters are customized). With servo driving, it features excellent acceleration and deceleration.


Steel Tube CNC Plasma Cutting Machine Application:

Square tubes and round pipes.


Applicable Materials:

Carbon steel,stainless steel, galvanized steel, aluminum, copper.


Video Of The Square Tube CNC Plasma Cutter:





Take A Glance At The Main Features Of The Square & Round Steel Tube Plasma CNC Cutting Machine:

  • Cutting length: 6000mm (Others are customized)

  • Max.cutting diameter: 300mm

  • Heavy duty plasma machine base

  • 4 Axis FL plasma cut system

  • THC (torch height controller)

  • Servo driving on the front and rear chucks

  • HIWIN 20mm linear square guide rails

  • 4 axis nesting software included


Technician Parameters of The Round / Square Steel Tubes CNC Plasma Cutting Machine:


Model No. U-PC6000T tube cnc plasma cutter
Standard Cutting Size

D: 200-300mm

L: 6000mm (Other lengthes are customized)

Cutting way Plasma
Clamping Mode By headstock (manual or air-actuated) and 4-jaw tailstock
Cutting Speed 0 ~ 4,000mm/min
Plasma CNC Controller FL controller with colorful LED display in English
Program Input USB port
Communication Code G-code
Arc Voltage T.H.C Included
Nesting Software for Plasma TubeMaster in English (4-axis version), programmable format (***.stp, ***.igs, ***.sj)
Linear Guide Rail HIWIN square type 20mm - branded product
Driving System for Rotary AC Servo - dual-drive design
Driving System for X/Z Leadshine Hybrid Servo
Plasma Sources

China Huayuan: 63A/100A/120A/160A/200A/300A

USA Hypertherm: 45A/65A/ 85A/105A/125A/200A/300A

Plasma Table Working Electricity AC200V~240V, 1 Phase, 50/60Hz or Made to order
Plasma Source Working Electricity AC380V
Packing Size 7800x1400x2140mm (24CMB around)
Gross Weight 2200KGS

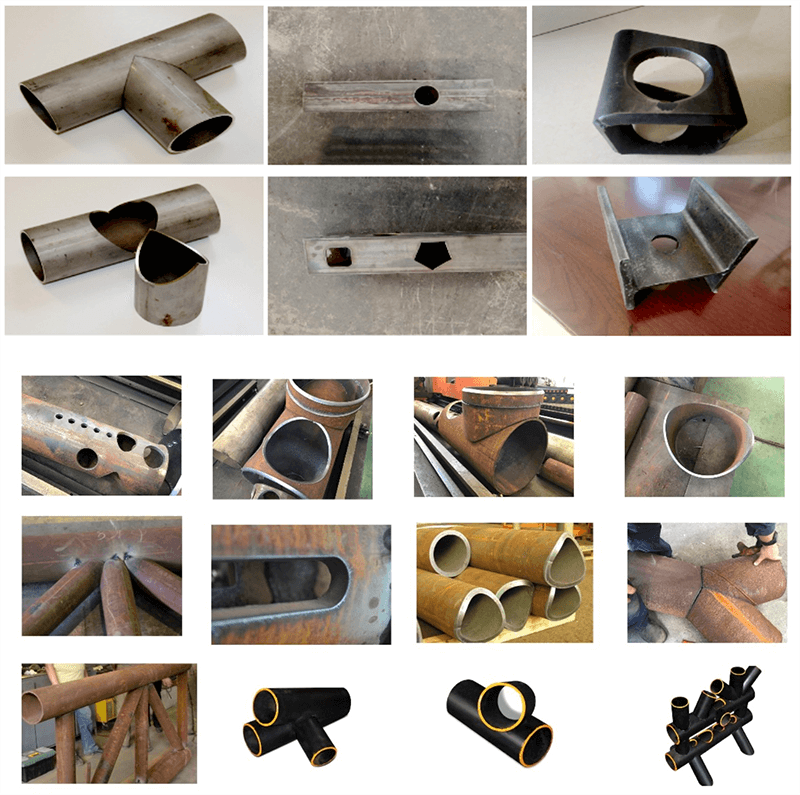

Samples cut by the round and square tube cutting CNC plasma cutting machine

metal tube cutting samples
