5 Axis Round Square Rectangular Steel Pipe Angle Channel Steel CNC Plasma Cutting Machine

Unique CNC 5 Axis CNC plasma cutting machine can cut steel square tubes, round pipes, rectangular tubes, angle steel and channel steel. The chuck sizes options are 320x320mm, 420x420mm, 500x500mm, 600x600mm,700x700mm and 800x800mm.
Availability:

PDF Export

  • U-PC6000-5A

  • UNIQUE CNC

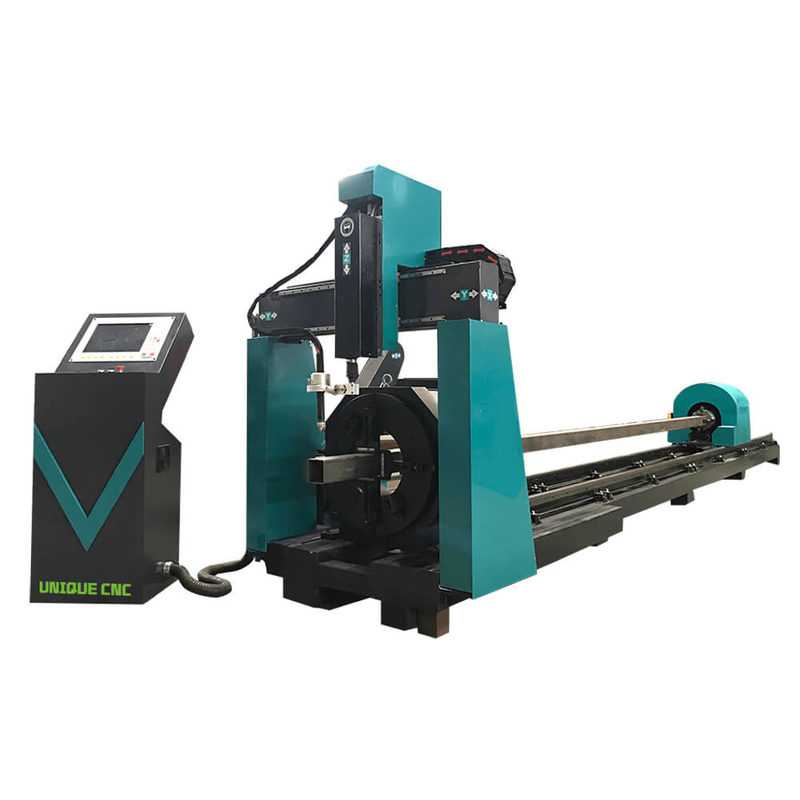

The U-PC6000-5A CNC Plasma Cutting Machine is ideal for cutting round, square and rectangle steel tubes,channel steel and angle steel. It equips with manual or pneumatic front and rear chucks which have many options 320x320mm, 420x420mm, 500x500mm, 600x600mm,700x700mm and 800x800mm.Standard cutting length is 6000mm, longer lengths are customized. With servo driving, it features excellent acceleration and deceleration.


5 Axis Round Square Rectangular Steel Pipe Angle Channel Steel CNC Plasma Cutting Machine

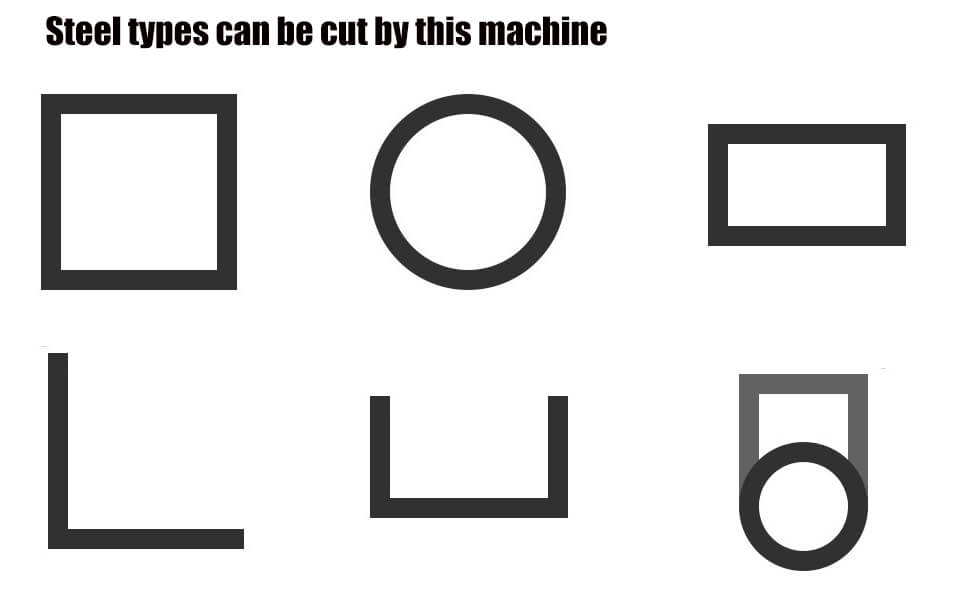

Round, square and rectangle steel tubes,channel steel and angle steel.


Applicable Materials of 5 Axis Steel Tubes Angle Steel And Channel Steel CNC Plasma Cutter

Carbon steel,stainless steel, galvanized steel, aluminum, copper.


Video of the CNC Plamsa Cutting Machine For Steel Tube Angle Steel Channel Steel





 channel steel cutting plasma



Technician Parameters of The Round / Square Steel Tubes CNC Plasma Cutting Machine

Description Parameter
Model No. U-PC6000-5A
Applicable steel
Square tube,round pipe,rectangular steel, channel steel, angle steel
Cutting length 6000mm (Other lengths are customized)
Chuck sizes 320x320mm, 420x420mm, 500x500mm, 600x600mm,700x700mm, 800x800mm.
Cutting precision 0.2mm
Max.cutting speed 25m/min
Driving system 1000W servo
Chuck motor 1000W servo
Reducer ratio
40:1
Power 5.5KW (Exclude plasma source)
Plasma source China Huayuan: 63A/100A/120A/160A/200A/300A

USA Hypertherm: 45A/65A/ 85A/105A/125A/200A/300

Voltage

Machine: 220V/380V

Working environment -10-55℃

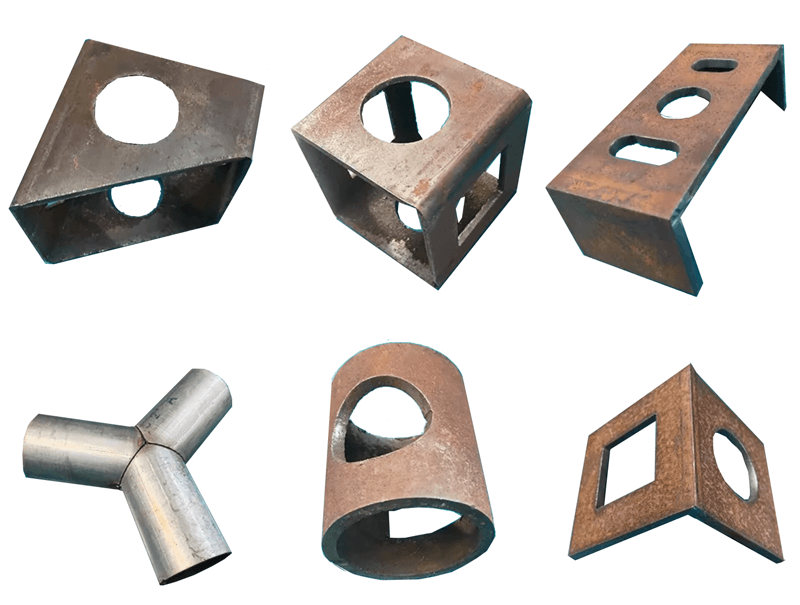

Samples cut by the round and square tube cutting CNC plasma cutting machine

5 axis cnc plamsa cutting sample
