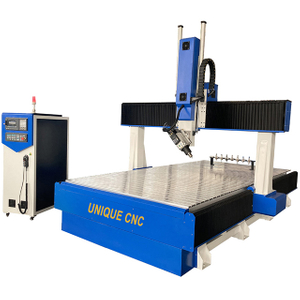

4 Axis Spindle Rotation CNC Mould And Die Making Machine

This 4 axis mould making cnc equips rotating spindle and auto tools changer. The spindle can rotate ± 90 degrees, it is able to process most wood,EPS,styrofoam,etc moulds.

PDF Export

  • U-R1530-M


4 Axis Wood/Foam/Styrofoam/EPS Mould Making CNC Router With Rotating spindle features

  • Z axis feeding height can up to 1 meters, it is very good at processing large size moulds.

  • Disassemble structure,makes it is eaier to transport.

  • Extremely rigid and heavy-duty structure,makes the machine very stable and durable,no any deformation even after many years.

  • Dust-free design, prolong the life of the transmit guide rails and racks.


Model No.Spindle rotating 4 axis cnc router
Bed structureAll thick steel tube welded
Table structureT-slot table Vacuum table, cast steel table
Cutting area1500x3000mm

1200x1200mm, 1300x2500mm,

2000x3000mm, 2000x4000mm...

Z feeding height800mm600-1000mm

X and Y axis: helical rack and pinion

Z axis: ballscrews

Linear square guide rails

Driving AC Servo
Max.moving speed45m/min
Max.cutting speed20m/min
Spindle9.0KW ATC spindle Manual tools changing spindles
Spindle rotating± 90 degrees
Compatible codeG code
Compatible softwaresPowermill,Mastercam,Artcam,UG,etc
Diagonal error0.03mm
