1000W 1500W 2000W Continuous Laser Cleaning And Rust Removal Machine

This fiber laser cleaning machine equips with double pendulum cleaning head. Cleaning is fast and high precision. The cleaning head weighs is less than 1.4KG and can provide 8 cleaning modes. The parameters are adjustable and the operation is simple.

PDF Export

  • UF-C1000W/1500W/2000W/3000W


Advantages of Laser Cleaning Machine

  • Green Cleaning
    The laser cleaning machine no need to use any chemicals and cleaning fluids. Environmental protection does not pollute the environment.

  • Non-touch cleaning
    The surface of the object is cleaned by beam irradiation. The laser cleaning machine does not touch the object during the cleaning process and will not damage the raw materials. The operation is simple, just turn on the power. It can be hand-held and can cooperate with the robot to realize automatic cleaning.

  • Cleanliness is high
    Laser cleaning can reach corners that cannot be cleaned by conventional cleaning. High cleaning efficiency, high cleanliness, saving time.

Laser Cleaning Machine Parameters

Item Parameter
Laser source Raycus/MAX/BWT
Laser Power 1000/1500W/2000W/3000W
Fiber cable length 10M
Wavelength 1080nm
Clean speed ≤40 M²/Hour
Scann speed 0-14000mm/s
Cooling method Water cooling
Working voltage 0.5KW/AC220V/50Hz(option)
Laser frequency 10-20KHZ
Voltage 220V/2P for 1000W and 1500W
380V/3P380V/3P for 2000W
Temperature 5-40℃

Machine details

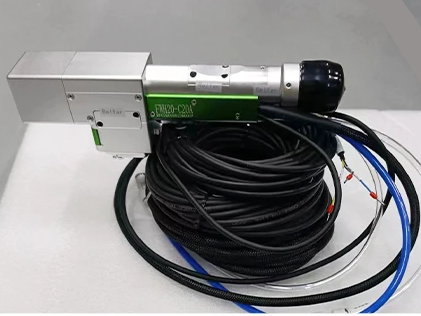

Handheld cleaning head

It can perform selective cleaning of precise position and precise size. Ergonomically designed, it is suitable for long-term cleaning and hand-held work.

cleaning head

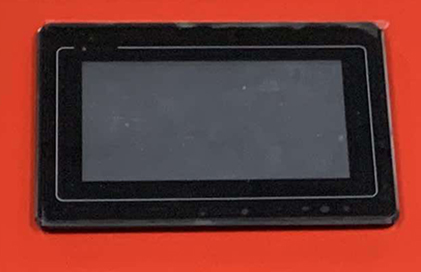

Control panel display

Easy to operate. The operation cleaning mode can be changed, remote operation, and cleaning is more convenient.

fiber laser control panel

Fiber Laser Cleaning Samples

fiber laser cleaning samples
