U-PD1200-2
UNIQUE CNC

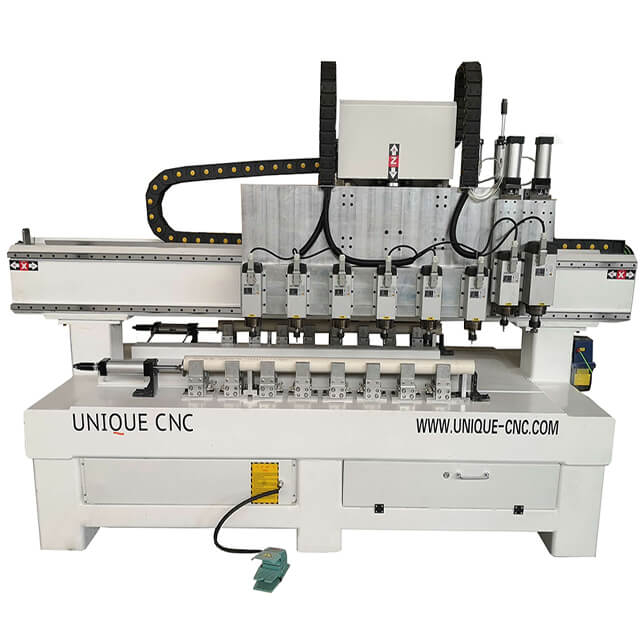

The multi-functional PVC pipe drilling CNC Router combines the functions of holes drilling and PVC surface milling. It has dual table, can process two workpieces at a time. Each table has three shift heads which can change automatically for different functions,the first shift head for milling the surface of the pipes,the second shift head for cutting a small hole at the end of pipes,the third shift head has 6 spindles,can drill 6 holes simultaneously.
Demo video of this powerful Unique CNC Made PVC pipes holes drilling,milling and cutting machine:
Applications of the PVC plastic pipes drilling & milling CNC Router:
1. Solar thermal heating systems PVC pipes drilling and milling
2. Animals feeding industry
3. Agricultural irrigation industry
4. Storage of vegetables industry
5. Others
Main Features of the PVC holes drilling and milling cnc machine:
1. Dual table,can process two workpieces at a time.
2. Simple operation.
3. Yaskawa servo driving.
4. World popular components.
5. Taiwan made linear square guide rails and ballscrews.
6. Auto lubrication of blocks and ballscrews.
7. Heavy duty structure, no vibration and deformation.
Parameters of the CNC Pipe Drilling Machine:
Item | Descriptions |
Model No. | U-PD1200-2 pvc pipe drilling milling machine |
Working length | 1200mm |
Drilling head | 6 pieces x 2 |
Drilling head power | 4.5kw |
Milling head | 1 piece |
Milling head power | 6.0KW |
Cutting head | 1 piece |
Cutting head power | 2.2KW |
Driving system | Yaskawa servo |
Empty moving speed | 40m/min |
Controller | CNC |
Guide rails | Linear square guide rails |
Transmit way | Gear rack for X-axis, Ball screw for Z-axis |
Pipe diameters can be processed | Customized |
