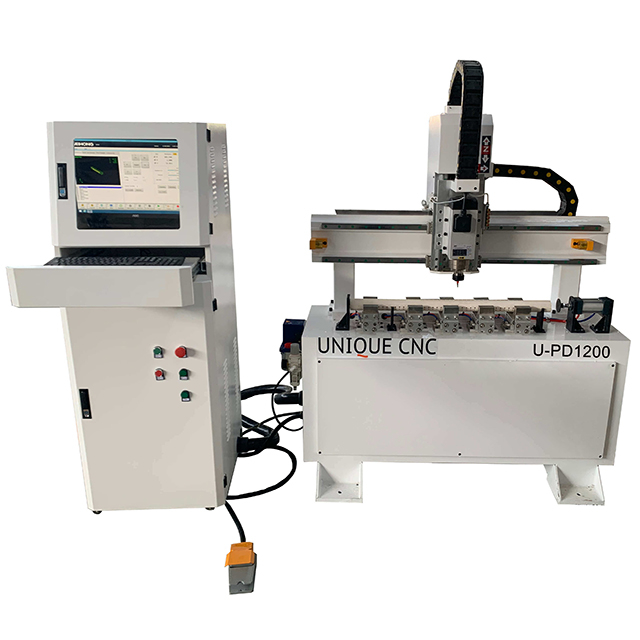

U-PD1200
UNIQUE CNC
Applications of the plastic pipes drilling machine:
1. Solar thermal heating systems PVC pipes drilling and milling
2. Animals feeding industry
3. Agricultural irrigation industry
4. Storage of vegetables industry
5. Others
Features of the PVC pipes drilling machine:
1. Thick steel welded base and gantry, stable,high precision and not deform in many years.
2. CNC control, adjust holes quantity and distance freely.
3. Simple operation, one button can control all the process.
4. Servo driving, fastest drilling speed.
5. No consumable parts except for the drilling tools.
Demo video of this wonderful plastic pipes holes automatic drilling machine:
Parameters of the plastic tubes holes drilling cnc machine:
| Item | Descriptions |
| Model No. | U-PD1200 pvc pipes drilling machine |
| Working length | 1200mm |
| Drilling head | 1 piece |
| Drilling head power | 4.5kw |
| Driving system | Yaskawa servo |
| Empty moving speed | 40m/min |
| Controller | CNC |
| Guide rails | Linear square guide rails |
| Transmit way | Gear rack for X-axis, Ball screw for Z-axis |
| Pipe diameters can be processed | Customized |
Applications of the plastic pipes drilling machine:
1. Solar thermal heating systems PVC pipes drilling and milling
2. Animals feeding industry
3. Agricultural irrigation industry
4. Storage of vegetables industry
5. Others
Features of the PVC pipes drilling machine:
1. Thick steel welded base and gantry, stable,high precision and not deform in many years.
2. CNC control, adjust holes quantity and distance freely.
3. Simple operation, one button can control all the process.
4. Servo driving, fastest drilling speed.
5. No consumable parts except for the drilling tools.
Demo video of this wonderful plastic pipes holes automatic drilling machine:
Parameters of the plastic tubes holes drilling cnc machine:
| Item | Descriptions |
| Model No. | U-PD1200 pvc pipes drilling machine |
| Working length | 1200mm |
| Drilling head | 1 piece |
| Drilling head power | 4.5kw |
| Driving system | Yaskawa servo |
| Empty moving speed | 40m/min |
| Controller | CNC |
| Guide rails | Linear square guide rails |
| Transmit way | Gear rack for X-axis, Ball screw for Z-axis |
| Pipe diameters can be processed | Customized |
