Mini Metal Marking Engraving Fiber Laser Machine

Availability:

PDF Export

  • U-FM20/30/50M

  • UNIQUE CNC

What is mini laser marking machine?

Mini laser marking machine is a type of compact laser engraving system, which is easy
to ship,place and move. It adopts a unique integrated and fully built-in design, highly integrated optical, electronic and
mechanical components, and a fully air-cooled design without external circulation cooling devices.

Mini Fiber Laser Marking Machine Advantages
1. Portable: Integration design covers small volume. It can be easily move anywhere.
2. Environmental friendly: No pollution and no consumables.
3. The portable laser etching machine can mark all the graphics generated by computer.
4. Permanent marks and strong anti-fake function.
5. Fast marking speed and high efficiency of process.
6. Software operation is easy to learn.
7. Extra long lifespan.The lifetime of the fiber laser can reach 100,000 hours. (12 years in the condition of 24 hours work
everyday).


Fiber laser marking machine applicable materials

Metal: Such as gold, silver, copper, iron, zinc, aluminum,iron, stainless steel and so on. Hard Plastic: PE, PP, PVC, etc.,
general engineering plastics and special engineering plastics.
It also can mark on some wood.


Parameters of the mini fiber laser marking machine

Descriptions
Parameters
Model No.
U-FM20/30/50M fiber laser marking machine
Fiber laser marking area
110*110mm,150*150mm,175*175mm,200*200mm,300*300mm
Working voltage
AC 110V/220V 50/60HZ
Laser source brand
Max/Raycus/JPT
Cooling way
Air cooling
Scanner
SINO
Minimum marking character
0.1mm
Minimum line width
0.01mm
Repeatability accuracy
0.003mm
Resolution
0.001mm
Marking speed
0-9000mm/s
Laser modulation frequency
20kHz~80kHz
Output laser power
20W~50W
Laser wavelength
1064nm
Control software
EZCAD2
Compatible computer system
Win XP, Win7, Win8, Win 10 32 bit/64bit
Warranty
2 years
Working environment
0~35°C, Humidity≤90%
Machine weight
50kg
Applications
Marking on metal, copper, stainless steel, hard plastic, animal ear tags, metal tags, dog tags and so on

Detailed images of the portable fiber laser marking machine

portable fiber

metal marking samples1

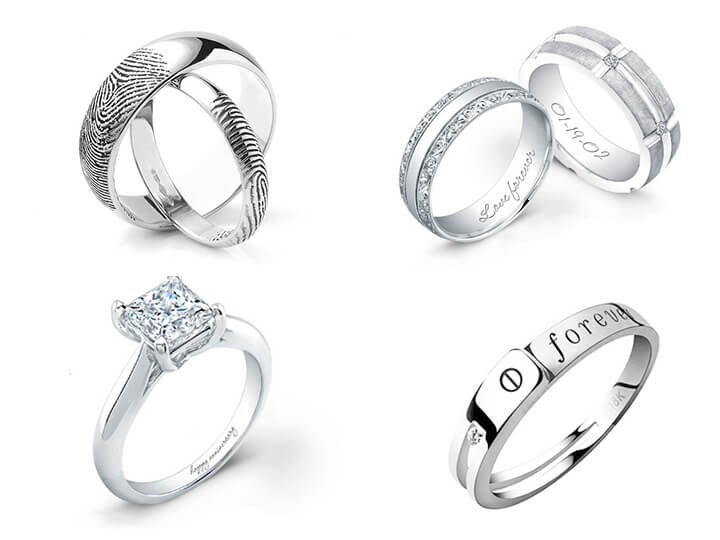

metal marking samples2

portable fiber laser marking engraving machine9

portable fiber laser marking engraving machine2
