U-FM20/30/50D
UNIQUE CNC
Fiber laser marking machine applicable materials
Metal: Such as gold, silver, copper, iron, zinc, aluminum,iron, stainless steel and so on. Hard Plastic: PE, PP, PVC, etc.,
general engineering plastics and special engineering plastics.
It also can mark on some wood.
Parameters of the metal fiber laser engraving marking machine
| Descriptions | Parameters |
| Model No. | U-FM20/30/50D desk type fiber laser engraving marking machine |
| Fiber laser marking area | 110*110mm,150*150mm,175*175mm,200*200mm,300*300mm |
| Working voltage | AC 110V/220V 50/60HZ |
| Laser source brand | Max/Raycus/JPT |
| Cooling way | Air cooling |
| Scanner | SINO |
| Minimum marking character | 0.1mm |
| Minimum line width | 0.01mm |
| Repeatability accuracy | 0.003mm |
| Resolution | 0.001mm |
| Marking speed | 0-9000mm/s |
| Laser modulation frequency | 20kHz~80kHz |
| Output laser power | 20W~50W |
| Laser wavelength | 1064nm |
| Control software | EZCAD2 |
| Compatible computer system | Win XP, Win7, Win8, Win 10 32 bit/64bit |
| Warranty | 2 years |
| Working environment | 0~35°C, Humidity≤90% |
| Machine weight | 50kg |
| Applications | Marking on metal, copper, stainless steel, hard plastic, animal ear tags, metal tags, dog tags and so on |

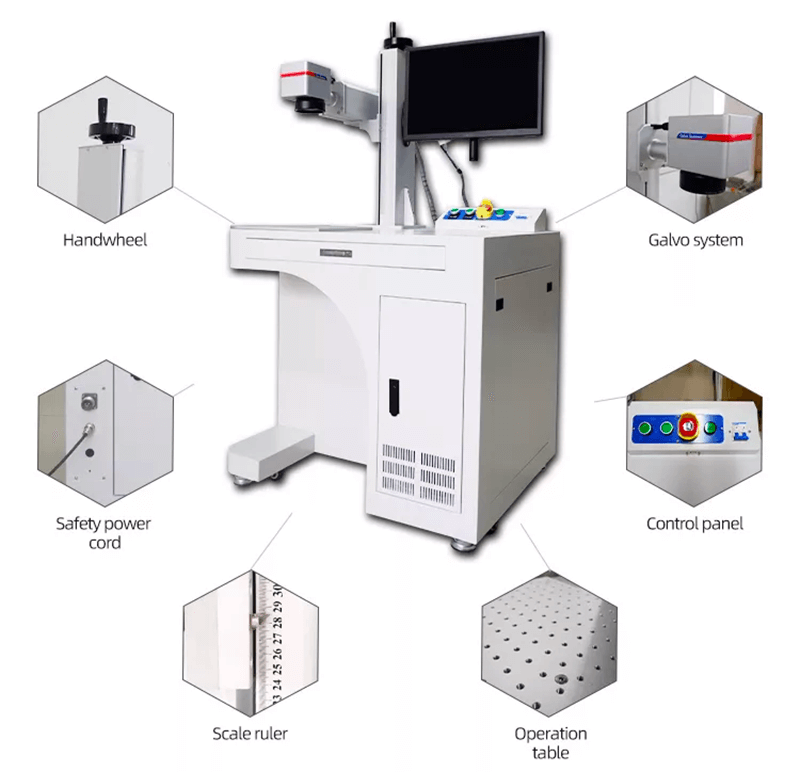

Detailed image of the desk type fiber laser marking machine for metal
Fiber laser marking machine applicable materials
Metal: Such as gold, silver, copper, iron, zinc, aluminum,iron, stainless steel and so on. Hard Plastic: PE, PP, PVC, etc.,
general engineering plastics and special engineering plastics.
It also can mark on some wood.
Parameters of the metal fiber laser engraving marking machine
| Descriptions | Parameters |
| Model No. | U-FM20/30/50D desk type fiber laser engraving marking machine |
| Fiber laser marking area | 110*110mm,150*150mm,175*175mm,200*200mm,300*300mm |
| Working voltage | AC 110V/220V 50/60HZ |
| Laser source brand | Max/Raycus/JPT |
| Cooling way | Air cooling |
| Scanner | SINO |
| Minimum marking character | 0.1mm |
| Minimum line width | 0.01mm |
| Repeatability accuracy | 0.003mm |
| Resolution | 0.001mm |
| Marking speed | 0-9000mm/s |
| Laser modulation frequency | 20kHz~80kHz |
| Output laser power | 20W~50W |
| Laser wavelength | 1064nm |
| Control software | EZCAD2 |
| Compatible computer system | Win XP, Win7, Win8, Win 10 32 bit/64bit |
| Warranty | 2 years |
| Working environment | 0~35°C, Humidity≤90% |
| Machine weight | 50kg |
| Applications | Marking on metal, copper, stainless steel, hard plastic, animal ear tags, metal tags, dog tags and so on |
Detailed image of the desk type fiber laser marking machine for metal
