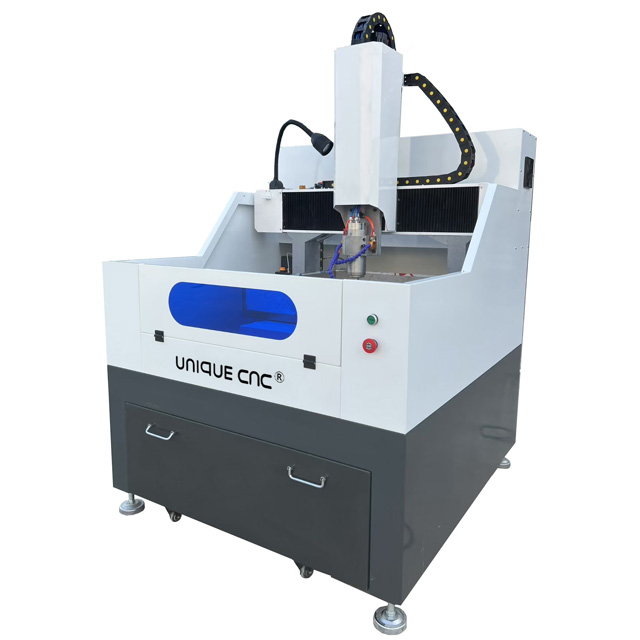

U-R6060
UNIQUE CNC
600×600mm Fixed Effective Workbench - Customized for metal mold processing, with large usable area and high bearing capacity to fix various size mold blanks stably.
Heavy-duty Integrated Frame Structure - Thickened high-strength bed with integral casting process, anti-vibration and non-deformable, ensuring machining stability at all speeds.
Ultra-high Machining & Positioning Precision - Precision linear guide rail + ball screw drive, micron-level positioning to guarantee mold surface smoothness and size accuracy.
Wide Adaptability to Metal Materials - Capable of processing steel, iron, copper, brass, aluminum, precious gold and silver metals for diverse mold production demands.
One Machine for Multiple Processes - Integrated engraving, milling, cutting, chamfering and drilling functions, realizing one-stop complete processing of metal molds.
High-efficiency Spindle with Strong Torque - High-power spindle supports high-speed cutting of hard alloys, significantly shortening mold processing cycle and improving productivity.
User-friendly Intelligent Control System - Simple operation interface with offline working mode, easy to master with low training cost for operators.
Efficient Spindle Heat Dissipation Design - Independent cooling system avoids thermal deformation, maintaining stable spindle speed and machining precision for long hours.
Stable Workpiece Clamping Device - Equipped with high-strength fixture, firmly fixing workpieces to prevent displacement during high-speed cutting and ensure processing safety.
Low Maintenance & Long Service Life - Industrial-grade core accessories with wear resistance, reducing equipment downtime and daily maintenance costs effectively.
Linear Guide Rails - Adopt taiwan brand lineare guide rails with high precision and the smoothest operation.
Guide Rail Sliders - Matched with the high-precision sliders of the same brand, featuring high rigidity and wear resistance for long-term reliable operation.
Ball Screws - Premium TBI ball screws applied to XYZ axes, with a large diameter of 32mm for enhanced strength and rigidity, guaranteeing superior machining accuracy.
Spindle Motor - Adopt Chinese famous HQD brand 3.2KW water cooled spindle, professional for metal engraving.
Connecting Cables - Use 6-core heavy-duty cables with German technology, characterized by high toughness and durability to avoid fracture during long-term operation.
Driving Motors - Equipped with 1KW servo motors and drivers.
Frequency Inverter - Adopt BEST brand inverter from China, ensuring stable speed regulation and excellent performance. Taiwan Delta VFD is optional.
Automatic Tool Setting Sensor - Configured for precise and quick measurement of the distance between the tool tip and the material surface, improving machining efficiency.
Internal Electrical Components - High-quality branded filters and power supplies are built into the control cabinet for stable circuit protection and long service life.
Optional part: the 4th rotary - It is for processing cylindrical metal workpieces, it enables the machine to perform 360 degrees continuous rotation. This device is ideal for engraving complex patterns,logos,serial numbers and helical grooves on metal columns.
| Specification | Parameter |
| Model | U-R6060 |
| X Y Z working area | 600*600*150mm |
| Machine body structure | Heavy-duty cast steel |
| Table | Cast steel T-slot table with water tank |
| Movement parts | Taiwan TBI Ball screw transmission |
| Spindle | 3.2KW water cooling spindle |
| Spindle speed | 0-24000 RPM |
| Drive Motor | Servo |
| Drive Mechanism | Table moving |
| Guide rail | Taiwan high accuracy square guide |
| Control System | DSP or Ncstudio |
| Software | Artcam,Fusion360 and so on |
| Rapid Travel Rate | 15000mm/min |
| Working Speed | 8000mm/min |
| Command | G code |
| Accuracy | ±0.01mm |
| Color | Customized |
Metal Molds Making, like shoes molds
| Electronics Industry like mobile phone covers moulds
| Jade Marble Stone 3D Engraving
|
Best Machining Precision - Realizes accurate carving, perfectly restores the delicate patterns, textures and complex curved surfaces of shoe molds, ensuring consistent size and shape of each mold.
High Efficiency for Mold Production - One-time automatic processing of the whole mold, replacing the traditional manual polishing and engraving, greatly shortening the shoe mold making cycle from several days to hours.
Excellent Compatibility with various Materials - Professional for processing all common mold metals including aluminum, copper, steel and alloy, meets the material requirements of different moulds types and production batches.
Stable & Uniform Mold Quality - Eliminates human errors in manual processing, ensures the same precision and finish of each mold, realizing standardized and batch production of various steel molds.
Perfect for Complex Mold Structures - Easily handles the multi-layer concave-convex, fine grain and special-shaped cavity of molds, which is difficult to achieve by traditional processing methods.
Low Processing Cost & High Profitability - Save a lot of labor costs and material waste, with longer service life of processed metal 3D moulds, effectively reducing the comprehensive production costs.
Flexible & Quick Design Modification - Support instant adjustment of the molds CAD design drawings, the CNC router can quickly reprocess new steel aluminum molds, perfectly adapting to the fast updating of product styles.
Smooth Surface Finish of Molds - The processed molds have smooth surface without secondary polishing, directly meeting the production requirements of products injection molding and pressing.
Continuous & Stable Working Capacity - Industrial-grade heavy-duty structure supports 24-hour uninterrupted processing, meeting the large-batch and urgent production needs of aluminum,steel and other mold factories.
